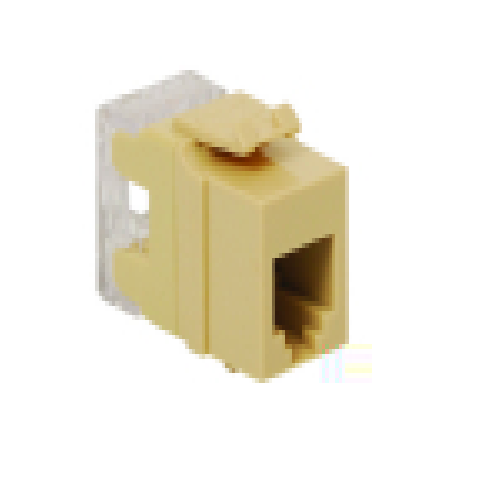

The HD 25-pack RJ-11 6P6C CAT 3 cable compatible modular jacks saves you time and money. It is ideal for all voice and business system applications. The 25-pack has a resealable strip at the top to prevent any mixing of colors or types of keystone jacks or even misplacing any extra keystone jacks you may have. Compatible with RJ11/14 and 25 keystone jacks and plugs.

Specifications

1. RJ-11 Voice Module:
A. Electrical:
Current rating: 1.5 amps max.
Voltage rating: 150 volts alternating
Dielectric withstanding voltage: 1000 volts rms, 60Hz
Insulation resistance: >10 mohms
B. Mechanical:
Mated force: 5 lbs max.
Unmated force: 5 lbs max.
Plug retention force: 20 lbs min.
Durability: 750 cycles
C. Physicals:
Housing: ABS, UL 94V-0
Contact: Phosphor bronze gold plating over 100 inches of nickel
Gold plating: 1.27 micron/50 micro inch min.
Connector: insulation displacement connector (IDC) accepts 22~24 AWG solid wire
