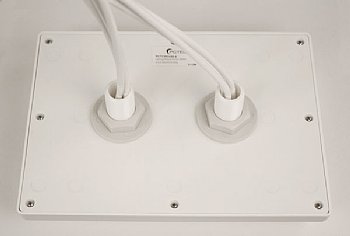

This very aesthetic indoor antenna provides for simple IEEE 802.11n MIMO upgrades for access points with 6 connectors. The antenna pattern is designed for ceiling mounted installations. The six plenum rated cables exit from two stud mounts in the antenna, requiring specification of, or replacement of, the door in Oberon's Model 1052-00, 1072-00, and other ceiling mounted enclosures. (The upgrade door for the 1052-00 is the 38-ADPDOOR-ZMIMO6X1). The antenna's cover is a textured UL94 V-0 plastic which is color matched to the enclosure.
|
Antenna Pattern: |
Omnidirectional |
 Frequency Range: |
2400-2500 MHz |
4900-5900 MHz |
Gain: |
2.5 dBi |
3 dBi |
VSWR: |
< 2:1 |
< 2:1 |
Connector: |
(3)RPTNC or (3)RPSMA (Please specify) |
Cable: |
(6) 3' Low Loss Plenum Rated |
Size: |
9.1" L, 6.6" W, 1.6" D |
