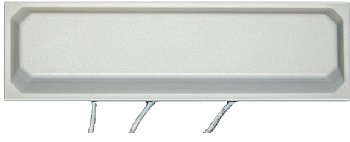

This very aesthetic indoor antenna provides for simple IEEE 802.11n MIMO upgrades for access points with 3 connectors. The antenna pattern is designed for ceiling mounted installations. This antenna is to be used in Oberon's model 1052-HFHS-N ceiling mounted wireless access point enclosure. The antenna simply clips into the enclosure door for a clean professional look. The antenna's PVC/Acrylic cover is color matched to the enclosure.
|
Antenna Pattern: |
Omnidirectional |
 Frequency Range: |
2400-2485 MHz |
4900-5900 MHz |
Gain: |
3 dBi |
4 dBi |
VSWR: |
< 2:1 |
< 2:1 |
Connector: |
RPSMA |
Cable: |
3 X 36" Low Loss Plenum Rated |
Size: |
12 1/8" L, 3 3/4" W, 3/4" D |
