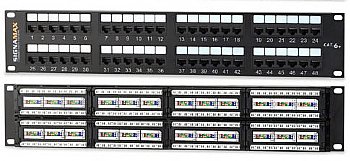

Category 6 Patch Panels are designed to exceed ANSI/TIA-568-C.2 component, permanent link and channel performance specifications providing usable bandwidth beyond 250 MHz and are backward compatible with lower category cabling systems. These high-density panels are available in 12- through 48-port versions and feature enhanced front and rear labeling features for easy circuit identification. Category 6 panels support both T568A and T568B wiring schemes using an easy-to-read color-coded wiring label.



Panels are constructed for maximum strength and durability and feature a fully enclosed, modular design, which provides flexibility and protection of printed circuitry during termination. The RJ-45 contact configuration provides enhanced plug-to-jack connection integrity for superior reliability. Rear termination is made quick and easy using a 4-pair inline 110-type connector compatible with our category 6 multipair impact tool to reduce installation time or an industry standard single-position 110-tool.



Panels include an integrated cable management feature for cable routing and strain relief requirements. An optional cable manage-ment bar, which mounts easily to the back of the panel, is available for improved cable routing and strain relief.
