E-1600-TP-IPEWP

Our Products: Phones > Other
SKU: E-1600-TP-IPEWP
Brand: Viking Electronics

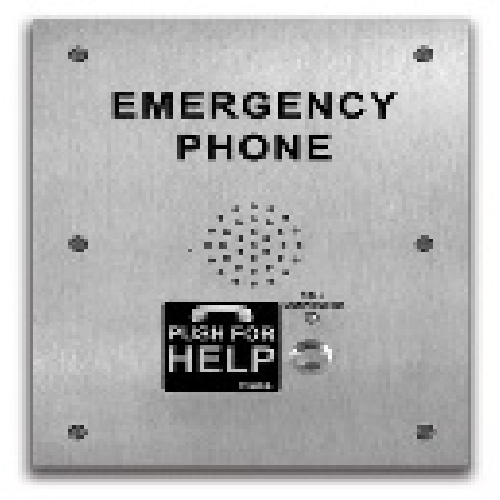

E-1600-TP-IPEWPVoIP Stainless Steel Emergency Phone for Talk-A-Phone Applications, Flush Mounts in a Talk-A-Phone Back Box
List Price: $1,394.00
Price: $680.00
You Save: $714.00 (51%)
Add to Wishlist Add to Wishlist
E-1600-TP-IPEWP
E-1600-TP-IPEWP
Previous Item Previous Item   Next Item Next Item
Product Details


The 1600-IP Series ADA Compliant VoIP Emergency Phones are designed to provide quick and reliable handsfree communication for any LAN with PoE. All 1600-IP Series phones meet ADA requirements for elevator/ emergency telephones, and can be programmed from any Touch Tone phone or PC on the same LAN. The phones can dial up to 5 programmable emergency numbers. In addition, the E-1600-20-IP and E-1600-52-IP feature a second "INFO" button that will dial up to 5 non-emergency numbers.

The 1600-IP Series phones can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF Touch Tone code may also be delivered. A "Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. All units are PoE powered.

For outdoor installations where the unit is exposed to precipitation or condensation, select 1600-IP Series phones are available with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For more information, see DOD# 859.



Applications

  • Elevators
  • Parking ramps/lots
  • Emergency pool phones
  • ATM machines
  • Area of refuge locations
  • Medical centers
  • Lobbies
  • Entryways
  • Campus emergency stations
  • Stadiums
  • Convention centers
  • Public access areas

Features

  • Self diagnostic reports via email (testing com, mic, speaker & switch)
  • Automatic polling and programming software included
  • 2 Amp relay contacts for door/gate or SL-2 strobe light control
  • SIP compatible (see pg 2 for list of compatible IP-PBX phone systems)
  • PoE powered (class 1, <4 watts)
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • Network downloadable firmware
  • Meets ADA requirements for Emergency Phones:
    - Automatically lights the "Call Connected" LED
    - Transmits a unique location I.D. code or voice announcement
    - Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 28 seconds of voice memory
  • Handsfree operation
  • Marine grade 316 stainless steel prevents corrosion on the stainless steel models
  • Dials up to 5 emergency numbers
  • E-1600-20-IP and E-1600-52-IP dial up to 5 non-emergency "INFO” numbers
  • Cycles through backup phone numbers on busy or no-answer
  • Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
  • Hangs up on busy signal, time-out or touch tone command
  • Remotely programmable
  • Extended temperature range (-15°F to 130°F)
  • 11 different chassis or board only available
  • Available in 42” tower phone model E-1600-BLT-IP-EWP (DOD# 217)
  • Optional PB-100 Polling System available (DOD# 232)
  • Optional SL-2 or BLK-4-EWP strobe light kit available (DOD# 242/653)
  • Optional E-1600A-MK-GNP Pedestal Mounting Kit (DOD# 227)

Specifications

  • Power: PoE class 1 (<4 watts)
  • Dimensions: See Installation and Specifications
  • Operating Temperature: -26° C to 54° C (-15°F to 130°F)
  • Humidity - Standard Products: 5% to 95% non-condensing
  • Humidity - EWP Products: Up to 100%
  • Audio Codecs: G711u, G711a, G722
  • Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
