SKU: E-1600-55-IP

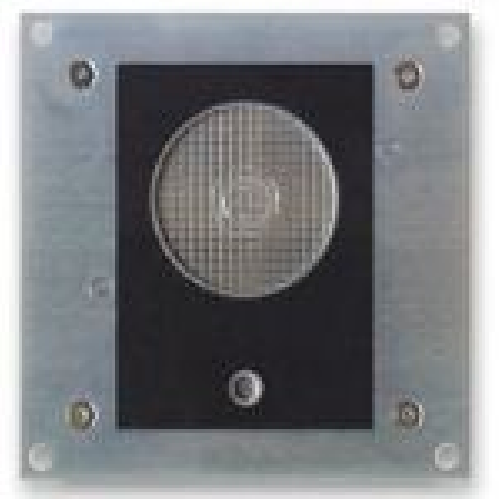

E-1600-55-IP E-1600-IP Kit that Mounts Behind Custom Elevator Panels
List Price: $618.00
Price:
$298.00
You Save: $320.00 (52%)
E-1600-55-IP
Product Details
The 1600-IP Series ADA Compliant VoIP Emergency Phones are designed to provide quick and reliable handsfree communication for any LAN with PoE. All 1600-IP Series phones meet ADA requirements for elevator/ emergency telephones, and can be programmed from any Touch Tone phone or PC on the same LAN. The phones can dial up to 5 programmable emergency numbers. In addition, the E-1600-20-IP and E-1600-52-IP feature a second "INFO" button that will dial up to 5 non-emergency numbers.The 1600-IP Series phones can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF Touch Tone code may also be delivered. A "Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. All units are PoE powered.For outdoor installations where the unit is exposed to precipitation or condensation, select 1600-IP Series phones are available with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For more information, see DOD# 859.Applications
- Elevators
- Parking ramps/lots
- Emergency pool phones
- ATM machines
- Area of refuge locations
- Medical centers
- Lobbies
- Entryways
- Campus emergency stations
- Stadiums
- Convention centers
- Public access areas
Features
- Self diagnostic reports via email (testing com, mic, speaker & switch)
- Automatic polling and programming software included
- 2 Amp relay contacts for door/gate or SL-2 strobe light control
- SIP compatible (see pg 2 for list of compatible IP-PBX phone systems)
- PoE powered (class 1, <4 watts)
- Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
- Network downloadable firmware
- Meets ADA requirements for Emergency Phones:
- Automatically lights the "Call Connected" LED
- Transmits a unique location I.D. code or voice announcement
- Grade 2 Braille label for the visually impaired - Non-volatile digital voice announcer with 28 seconds of voice memory
- Handsfree operation
- Marine grade 316 stainless steel prevents corrosion on the stainless steel models
- Dials up to 5 emergency numbers
- E-1600-20-IP and E-1600-52-IP dial up to 5 non-emergency "INFO” numbers
- Cycles through backup phone numbers on busy or no-answer
- Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
- Hangs up on busy signal, time-out or touch tone command
- Remotely programmable
- Extended temperature range (-15°F to 130°F)
- 11 different chassis or board only available
- Available in 42” tower phone model E-1600-BLT-IP-EWP (DOD# 217)
- Optional PB-100 Polling System available (DOD# 232)
- Optional SL-2 or BLK-4-EWP strobe light kit available (DOD# 242/653)
- Optional E-1600A-MK-GNP Pedestal Mounting Kit (DOD# 227)
Specifications
- Power: PoE class 1 (<4 watts)
- Dimensions: See Installation and Specifications
- Operating Temperature: -26° C to 54° C (-15°F to 130°F)
- Humidity - Standard Products: 5% to 95% non-condensing
- Humidity - EWP Products: Up to 100%
- Audio Codecs: G711u, G711a, G722
- Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
