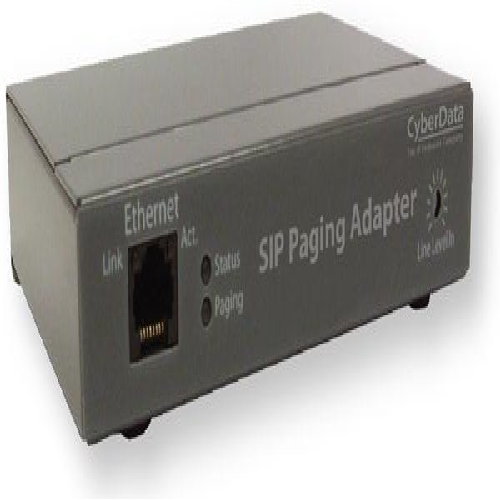

The CyberData SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with SIP and Multicast-based audio sources.
The SPA (SIP Paging Adapter) can be configured to support two separate SIP extensions. SIP extension one passes audio through to the analog output spoken from the caller’s handset. When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group.
Voice prompt pass code and page control
9 User-uploadable page messages
10 channel prioritized Multicast ports
HTTP Web interface and setup
Built-in diagnostics
10K Ohm input for background music
600 Ohm Balanced audio output
Unbalanced Line-Out
10/100 802.3af PoE
