ITW-MCO4

Our Products: Other Phones > Line and Power Protection
SKU: ITW-MCO4
Brand: ITW Linx

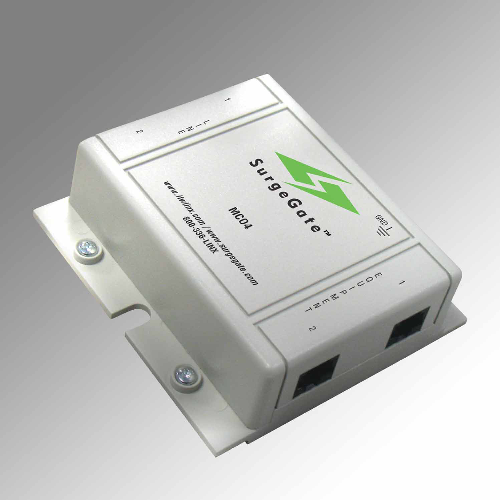

Towermax CO/4 Module
UPC: 790237001054
List Price: $67.50
Price: $60.77
You Save: $6.73 (10%)
Add to Wishlist Add to Wishlist
ITW-MCO4
ITW-MCO4
Previous Item Previous Item   Next Item Next Item
Product Details
  • Analog Station Set and Central Office Line Protector
  • Protects up to 4-wires (2-pairs) per jack. Using RJ11/45 connectors (2in/2out, pins 3, 6, 4, 5 protected)
  • Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.
  • Expandable modular system
  • Applications: Analog and Central Office lines for PBX or KSU
  • Agency Approval: UL 497A (Secondary)
  • Grounding Requirements: Uses Electrical AC Ground
  • Recommended Grounding Impedance: <0.5Ohm
  • Signal Perfect Circuitry
  • Auto-Resetting PTCs: 160 mA (8-10 Ohms)
  • Clamping Level: 260V
  • Response Time: 1-5 Nanoseconds
  • Capacitance: <50pF
  • Suppression Modes: Metallic and Longitudinal
  • Wires Protected: 4-wires (2-pairs) per jack (pins 3, 6, 4, 5)
  • Termination Type: RJ11/45
