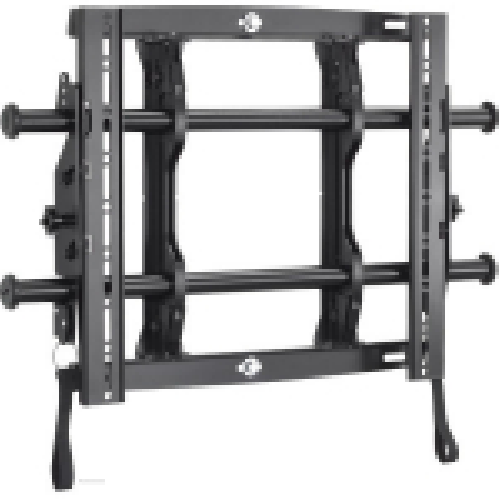

The installer-inspired MTM tilt mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for medium flat panel screens.
ControlZone Leveling for post-installation fine tuning of height and leveling Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile Centerless Shift provides up to 14.5" (368 mm) of post-installation lateral shift - 7.25" (184 mm) left/right of uprights - for limitless centering ClickConnect offers an audible click when the screen safely engages with the mount Built-in cable stand provides easy access under the screen A full line of accessories can be installed with the mount and the entire unit can be adjusted together Provides integrated security, just add a padlock
Tilt: 0 - 12° Max Lateral Shift: 14.5" (368 mm) Height Adjustment: +/-0.5" Mounts on Studs: single stud or 16" centers Dimensions: HxWxD 16.53" x 25.44" x 1.99" (420 x 646 x 51 mm) Max Mounting Pattern: height - 15.74" (400 mm), width - 26.25" (667 mm) Weight Capacity: single stud - 75 lbs (34 kg), dual stud - 125 lbs (56.7 kg) Color: Black
