PDT Series Thin Power Strips take up minimal space inside a
Rack and feature a unique design that allows for isolated
Ground configurability. Dual circuit models can be configured to operate as a single circuit and all models are factory assembled for easy installation.

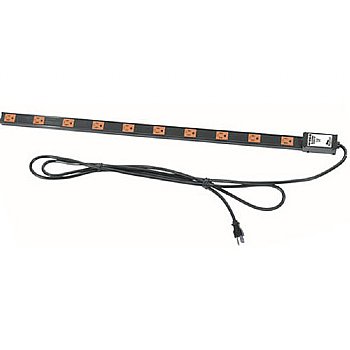

Middle Atlantic PDT-1015C-RN Features:
- Small size uses a minimum of space
- Dual circuit models can be field configured to operate as a single circuit
- Unique design allows for isolated Ground configurability in the field
- Saves time - ships fully assembled with all needed accessories including cable management clips
- Outlets are spaced to provide enough room for plug-in power supplies
- Top feed models with J-Box on the top of the power strip, available to meet code requirements in select areas
- Easy to order - a single part number includes all needed accessories
- Mounts easily with provided clips
- 15 Amp models are prewired with 12-gauge wiring and can be attached to a 20 Amp branch circuit
- Surge protected models include LEDs for convenient local status indication, and also have Dry contact closure for remote status notification
- Metered models include high visibility red LED display; indicates current to tenths of Amps
- Corded models feature SingalSafe() cords to virtually eliminate AC magnetic fields
- NRTL Listed in the US and Canada
Middle Atlantic PDT-1015C-RN Specifications:
- Circuit: 15 Amp (1)
- Termination: 9' cord w/NEMA 5-15p Plug
- # of Outlets: 10
- OD Length: 37.75"
- NRTL Listed*: UL standard #1363 Relocatable Power Taps
- J-Box/Cord Location: bottom
- Isolated (Technical) Ground: no
- Surge and Spike Protection with remote notification: yes
- Amp Meter: no
