96-port 10/100/1000BASE-T, MRJ21
|
Product Description |
Extreme Networks BlackDiamond 8900-G96T-c - expansion module - 96 ports |
|
Device Type |
Expansion module |
|
Form Factor |
Plug-in module |
|
Weight |
8.2 lbs |
|
Ports Qty |
96 ports |
|
Cabling Type |
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
|
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Data Transfer Rate |
1 Gbps |
EN, Fast EN, Gigabit EN, EN 1000Base-T, EN 100Base-TX, EN 10Base-T, Plug-in module

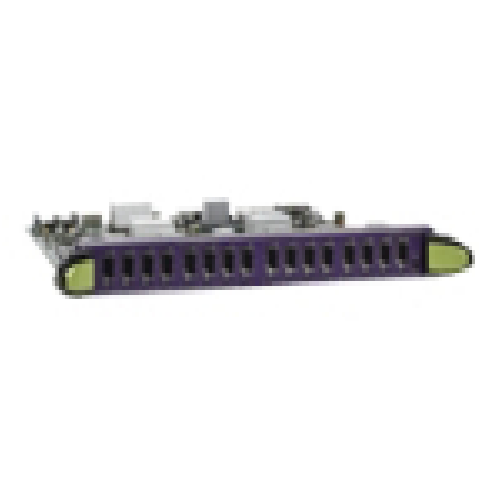

A BlackDiamond module consists of a printed circuit board mounted on a metal panel that acts as the insertion vehicle in the BlackDiamond 8800 series switches. The module carrier also includes ejector/injector levers and captive retaining screws at each end of the module front panel. LEDs on the module front panel provide information about the operating status of the modules. The 8900-G96T-c I/O module has 96 10/100/1000BASE-T ports using MRJ21 connectors.
