DESCRIPTION:

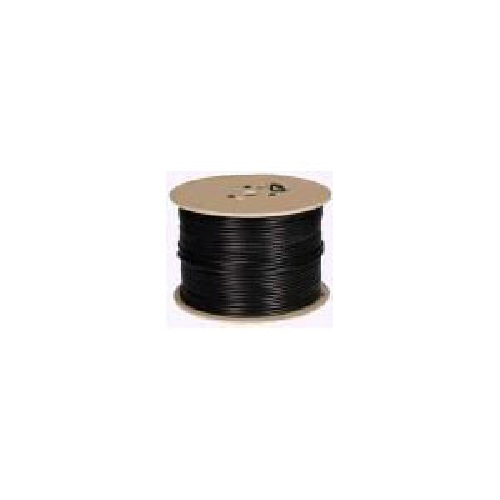

RG-58A/U Thinnet plenum coaxial cable with 95% braid

RATING:
ETL listed as CMP/CL2P and IEEE 802.3

CONSTRUCTION PARAMETERS:
Conductors : 20 AWG (19/32) Stranded Tinned Copper
Dielectric : Foam FEP color natural
Shielding : Aluminum/Polyester/Aluminum Foil with 95% Tinned Copper Braid
Jacket : Low Smoke PVC

ELECTRICAL PROPERTIES:
Conductor Resistance (ohms/Kft) : 9.5
Impedance (ohms) : 50
Capacitance (pF/ft) : 24.8
Velocity of Propagation (%) : 82

MISCELLANEOUS INFORMATION:
Flame Rating: UL 910 Steiner Tunnel Smoke and Flame Test
Applicable NEC Article: 725
Approximate Weight (lb/1000 ft): 30
