PHSW6

Our Products: Tools & Testers > Misc.
SKU: PHSW6
Brand: Erico

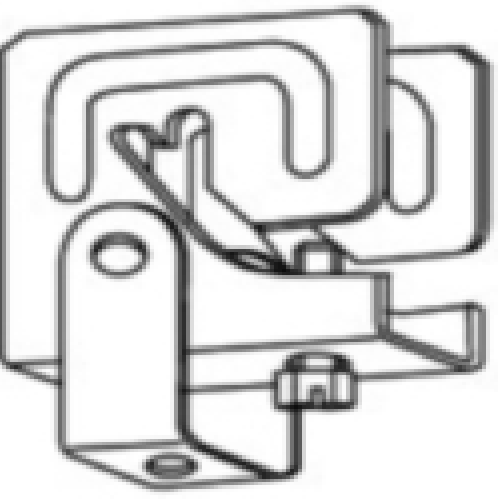

Erico Multi-Flange Beam Clamp with Swivel for 3/8-16 Rod/box 25
List Price: $334.00
Price: $199.95
You Save: $134.05 (40%)
Add to Wishlist Add to Wishlist
PHSW6
PHSW6
Previous Item Previous Item   Next Item Next Item
Product Details
Features:
  • Size range: 1/4" and 3/8" rod sizes
  • C or Z Purlins or up to 1/4" (7mm) horizontal beam flanges
  • Fast installation of threaded components; (1/4" or 3/8" ).
  • Hardened cup point setscrew for secure grip.
  • Integrated thread impression eliminates need for nuts
  • Slotted, Hex, Robertson, Phillips combo head bolt
  • Swivel feature option for attachment to purlins or beams under sloped roofs
  • Electrogalvanized finish for corrosion protection
  • UL Listed as conduit and cable support, jam nut not included
  • Mamximum flange thickness: 1/4" Maximum recommended load: C & Z purlins: 200 lbs (0.90 kN), flat flange: 160 lbs (0.71 kN)
  • Recognizing that torque wrenches are generally not used or available on many job sites, the setscrew should be tightened so it contacts the I-beam and then an additional 1/4 to 1/2 turn added
  • Box of 25
