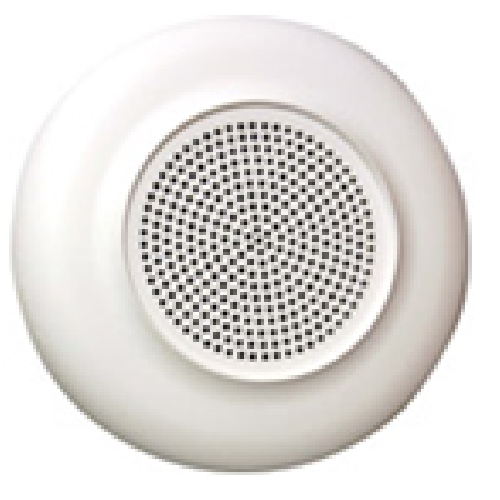

Ceiling Speaker, round, white
The NEW Wheelock Series E60 Ceiling Speakers and Speaker Strobes are designed for high efficiency sound output, with dual voltage (25/70 VRMS) capability and field selectable taps from 1/8 to 2 watts. These E60 Multi-Candela ceiling appliances are part of the new family of ceiling mount strobe appliances that will also be available on strobes, horns and horn/strobes. Optional Extender (E60 Ext) is for mounting to 4” backboxes with no extension ring.
The Series E60 Speaker Strobe models incorporate the Low Current draw Series RSS Strobes. These ceiling mount round models are available in Wheelock patented MCC multi-candela ceiling strobe with field selectable intensities of 15/30/75/95cd or the high intensity MCCH strobe with field selectable 115/177cd.
Series E60 Speakers and Speaker Strobes provide high audio output with clear audibility and are designed to meet the critical needs of the life safety industry for effective emergency voice communications, tone signaling and visible signaling to alert the hearing impaired.
The low profile design incorporates a speaker mounting plate for faster and easier installation. Each model has a built-in level adjust¬ment feature and snap-on cover with no visible mounting screws.
The strobe portion of all Series E60 Speaker Strobes may be synchronized when used in conjunction with the Wheelock SM, DSM Sync Modules or the Wheelock PS-24-8MC Power Supply with Patented Sync Protocol. Wheelock synchronized strobes offer an easy way to comply with ADA recommendations concerning photosensitive epilepsy.
Series E60 Speaker Strobes are UL Listed for indoor use under Standard 1971 (Signaling Devices for the Hearing-Impaired) and Standard 1480 (Speaker Appliances), and use a Xenon flashtube with solid state circuitry enclosed in a rugged Lexan® lens to provide maximum reliability for effective visual signaling. All inputs are supervised and employ IN/OUT wiring terminals for fast installation using #12 to #18 AWG wiring.
Color options for the Series E60 Speakers and Speaker Strobes are red and white.
Features
• Approvals include: UL Standard 1971, UL Standard 1480, Pending:New York City (MEA), California State Fire Marshal (CSFM), Factory Mutual (FM) and Chicago (BFP) See approvals by model in Specifications and Ordering Information
• ADA/NFPA/ANSI compliant
• Complies with OSHA 29 Part 1910.165
• Ceiling mount strobe models are available with field selectable candela settings of 15/30/75/95cd or 115/177cd (Multi-candela models)
• Strobes produce 1 flash per second over the regulated voltage range
• 24 VDC with wide UL "Regulated Voltage”
using filtered DC or unfiltered VRMS input voltage
• Synchronize with Wheelock SM, DSM or Wheelock PS-24-8MC Power Supply with built-in sync protocol
• Field selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 2 watts
• High efficiency design for maximum output at minimum wattage across a frequency range of 400 to 4000 HZ
• Fast installation with IN/OUT screw terminals using #12 to #18 AWG wires
• Optional Extender (E60 Ext) is for mounting to 4” backboxes with no extension ring.
