Multipurpose push stations
NPS-R-006
NPS-Y-001
Description

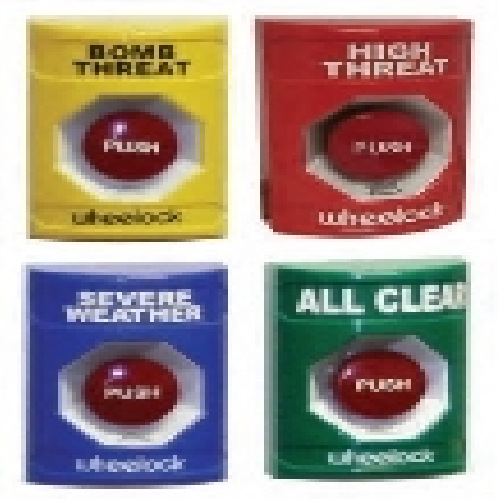

Multipurpose push stations (NPS) are used for manual activation of
SAFEPATH voice evacuation system pre-rcorded messages. The NPS
is used to manually activate a message in an emergency or other
type of event in which an automated voice message such as All
Clear, Fire Test, and Evac Drill is needed or required.
Applications
• For use with and SAFEPATH multi-function facility
communications system
• Manual activation of messages in the event of an emergency
• Manual activation of messages to alert or warn others
Features
• UL 2017 Listed switch assembly
• Available in five colors: Red, Green, Yellow, White, or Blue
• Custom wording available
• Polycarbonate faceplate
• Stainless steel backplate
• ADA Compliant
• Mounts to single gang electrical box
• Interchangeable or replaceable Normally Open (NO) and
• Normally Closed (NC) Single Pole, Single Throw gold-plated
contact blocks rated for 3 amps @ 600 VAC or
• 1 amp @ 250 VDC
• Reset by depressing the “Push” button, and turning clockwise a
¼ turn
• Comes with one (NO) contact and one (NC) contact
• Measurements: 5” H x 3¼” W x 1½ D
