E50-24MCWH-FR

Our Products: Tools & Testers > Tools/Testers
SKU: E50-24MCWH-FR
Brand: Cooper Wheelock

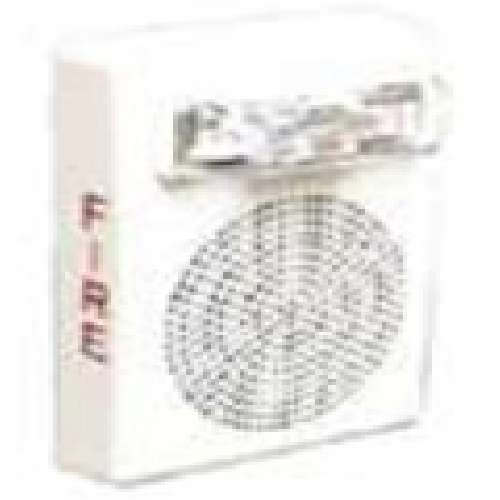

COOPER WHEELOCK E50 SPEAKERS & SPEAKER STROBES, RED
List Price: $101.43
Price: $55.92
You Save: $45.51 (45%)
Add to Wishlist Add to Wishlist
E50-24MCWH-FR
E50-24MCWH-FR
Previous Item Previous Item   Next Item Next Item
Product Details
SEMI-FLUSH, 135/185 CD, RED 25/70 vrms, 1/8 - 2 watts, optional multi-cd strobes, (fits into a 2 1/8" backbox) E50 no extension ring needed

The Wheelock Series E50 Speaker Strobes feature high efficiency sound output, with dual voltage (25/70 VRMS) capability and field selectable taps from 1/8 to 2 watts. They are designed to provide a sleek, aesthetic appearance for emergency voice/alarm communications systems. All Series E50 models mount to standard 4” x 2-1/8” electrical boxes (with no extension ring required) and incorporate a speaker mounting plate for faster installation. The grille cover snaps on so no mounting screws are visible.

Features:
  • Field selectable candela settings of 15/30/75/110cd or 135/185cd (Multi-Candela models), or 1575cd (Single Candela model)
  • Field selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 2 watts
  • High efficiency design for maximum output at minimum wattage across a frequency range of 400 to 4000 HZ
  • 24 VDC strobes produce 1 flash per second with wide UL
  • “Regulated Voltage” of 16 to 33 volts using filtered DC or unfiltered VRMS input voltage
  • Synchronize with Wheelock DSM or Wheelock Power Supplies with built-in sync protocol
  • Mount to 4” square x 2-1/8” deep backbox with no extension ring required
  • Snap on grille cover with no visible mounting screws
  • Fast installation with IN/OUT screw terminals using #12 to #18 AWG wires
  • Red
