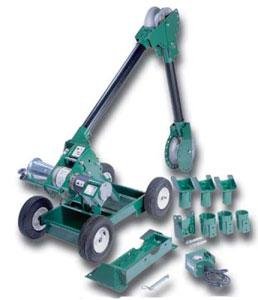

Ultra Tugger® Cable Puller Deluxe Package. Includes Standard Force Gauge, Wheeled Carriage, 3 ft (.9m) and 4 ft. (1.2m) Boom, Boom Mount and Nose Unit, Elbow Unit, Floor Mount, 2-1/2”, 3” and 4” slip-in couplings, 2-1/2”, 3”, and 4” screw-on
Spec:
- Weight 86 lbs. (39 kg)
- Dimensions Length - 11.5 in. (292.1 mm)
- Width - 26 in. (660.4 mm)
- Height - 8.5 in. (215.9 mm)
- Drive Motor 1-1/2 Horsepower
- Power Source 6800, 01, 02, and 05 120 V 20 A; Power Source 6800-22, 6802-22 and 6805-22 220 VAC 50 HZ;
- Pulling Force Maximum - 8,000 lbs. (35.8 kN), Continuous - 6,500 lbs. (28.9 kN);
- Pulling Speed - No Load: 9 fpm, (2.7 mpm)
- At 2000 lbs. (.9 kN): 8 fpm, (2.4 mpm)
- At 4000 lbs. (1.8 kN): 7.5 fpm (2.3 mpm)
- At 6000 lbs. (2.7 kN): 7 fpm (2.1 mpm)
-
At 8000 lbs (3.6 kN): 6 fpm (1.8 mpm)
-
Required Rope - 7/8 diameter (22.2 mm); Double-Braided Polyester Composite - Rated at 32,000 lbs. (142 kN) minimum breaking strength
Description:
- Pulls up to 8,000 (35.8 kN) lbs.
- Versi-Boom™ System allows you to make versatile and fast set-ups and pull 10' (3 mm) or 20' (6 mm) of extra cable easily.
- Uses standard 3' rigid steel conduit for boom.
- Direct gear drive.
- Lightweight. Portable. Optional deluxe force gauge.
