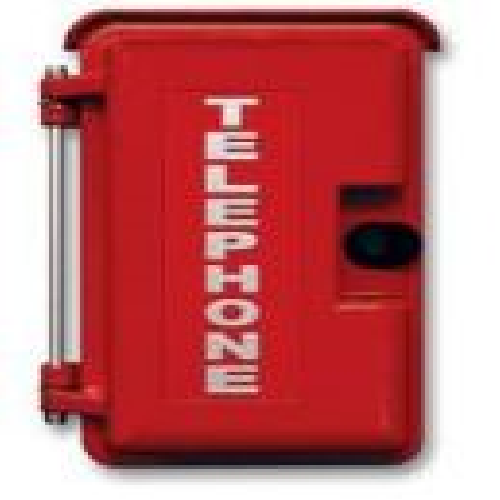

The VE-9X12R-2 enclosures are constructed of cast aluminum and are made for years of outdoor service. The heavy aluminum doors are labeled "Telephone" and have a gasket seal to keep out even the harshest weather.
The VE-9x12 is available with two adapter panels that allow multiple Viking products to be installed.
Both the VE-9x12 and VE-9x20 are available in two high visibility colors: safety yellow or emergency red.
An optional lock (VE-PBL) is also available for applications where security is a concern.
VE-9X12R-2 Applications
Parking lots
Maintenance areas
Building exteriors
Swimming pools
Play grounds
Roadside help areas

Features
Heavy cast aluminum construction
Gasket sealed door
Drip guard
3/4" NPT conduit openings
Push-button Latch
Available in two colors: safety yellow and emergency red
Hardware included
Universal mounting adapters for multiple products
Compatible with these Viking products: E-10,E-15,E-30,W-1000,W-3000

Specifications
Dimensions: Overall - 235mm x 324mm x 203mm (9.25" x 12.75" x 8"), Approximate Maximum Internal Clearance - 129mm x 285mm x 114mm (5.75" x 10.0" x 6.75")
Shipping Weight: 5.4 kg (12 lbs.)
Colors: Red with white lettering or yellow with black lettering
Conduit opening: ¾" NPT with plug, top and bottom
