Digital Video Recorder:

• Stand alone network 8 channel DVR
• EDGE design for stand alone or VESA mount (Wall & LCD)
• 3D graphics, crisp, color rich, high contrast video
• DVI and VGA for display on LCD PC monitor or TV with DVI/VGA input. DVI to VGA adapter included. HDMI compatible•
• H.264 compression for efficient file transfer & storage (up to 50% more than MPEG4)*
• Pentaplex operation - View, Record, Playback, Back Up & Remotely Control the system simultaneously
• View and record at VGA resolution (640 x 480) per channel
• Small form factor (7.0x11.5x1.5”)
• Expandable up to 1TB SATA HDD
• “FLEX” IR controller (line-of-sight not required)
• USB ports for backup, image transfer, firmware upgrade and mouse
• Alarm Input/Output (4/1 ), 2 Audio Inputs/Outputs
• Recording options: motion detection, schedule or continuous
• System menu in 17 languages including English, French and Spanish

Cameras:

• Resolution: 420 TV Lines
• 18 IR LEDs provides night vision range of 40ft (12m)**
• True Day/Night operation using built-in IR Filter Changeable Mechanism to achieve accurate color representation in changing lighting conditions
• Advanced Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
• Weatherproof Design: ideal for Outdoor and Indoor applications (IP66***)
• Ceiling , wall or counter mountable with versatile stand

Web Browser Remote Access Software:

• Internet Remote Functions****: View, Search & Playback, Back-up and Setup
• E-mail alerts with a snap-shot image attachment keeps you informed when events occur
• Web browsers supported: Internet Explorer , Firefox
• Microsoft Windows™ XP, Vista, 7 Compatible
• Free Lorex DDNS (Dynamic Domain Name System) service keeps you connected anywhere all the time

Easy Connect & Instant Mobile Viewing:

• Lorex Easy Connect Internet Remote Viewing using Internet Explorer web browser only. Hassle-free installation with no need to port-forward your router. Free firmware download is available from www.lorexcctv.com
• Instant Mobile Viewing on an iPhone™ using an iPhone™ App. Free download available from Apple™ Store under the name “Lorex Live”. Compatible with iPhone™ version 3.1.2 and above. Selectable one channel live viewing. Mobile phone data plan is required (not included). Router port forwarding is required.
• Instant Mobile Viewing ‡ on Windows Mobile™ 6.0 and above (free download available from www.lorexcctv.com). Selectable one channel live viewing. Mobile phone data plan is required (not included). Router port forwarding is required.

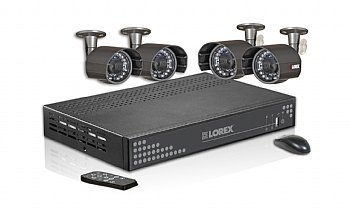

System Includes:

• DVR, HDD Pre-Installed, Remote Control & “Flex” IR controller, Power adaptors for DVR, Mouse, Ethernet Cable, 4 or 8 x Cameras, 4 or 8 x Camera Stands, 4 or 8 x BNC to RCA Adaptors, 4 or 8 x 60ft BNC Extension Cables, 4 or 8 x Camera Power Adaptors (or 4 x 4 in 1 camera power adaptor), 2 screws (for key-hole style VESA mounting).
