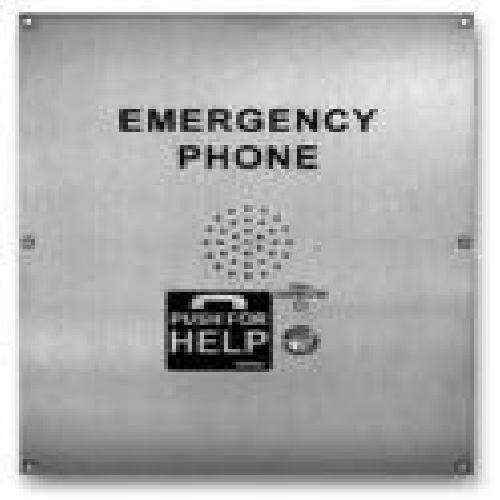

The 1600-IP Series ADA Compliant VoIP Emergency Phones are designed to provide quick and reliable handsfree communication for any LAN with PoE. All 1600-IP Series phones meet ADA requirements for elevator/ emergency telephones, and can be programmed from any Touch Tone phone or PC on the same LAN. The phones can dial up to 5 programmable emergency numbers. In addition, the E-1600-20-IP and E-1600-52-IP feature a second "INFO" button that will dial up to 5 non-emergency numbers.

The 1600-IP Series phones can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF Touch Tone code may also be delivered. A "Call Connected™ LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. All units are PoE powered.

For outdoor installations where the unit is exposed to precipitation or condensation, select 1600-IP Series phones are available with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards.

Applications

• Elevators
• Parking ramps/lots
• Emergency pool phones
• ATM machines
• Area of refuge locations
• Medical centers
• Lobbies
• Entryways
• Campus emergency stations
• Stadiums
• Convention centers
• Public access areas

Features

• Self diagnostic reports via email (testing com, mic, speaker & switch)
• Automatic polling and programming software included
• 2 Amp relay contacts for door/gate or SL-2 strobe light control
• SIP compatible (see pg 2 for list of compatible IP-PBX phone systems)
• PoE powered (class 1, <4 watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• Network downloadable firmware
• Meets ADA requirements for Emergency Phones:
  - Automatically lights the "Call Connected" LED
  - Transmits a unique location I.D. code or voice announcement
  - Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 28 seconds of voice memory
• Handsfree operation
• Marine grade 316 stainless steel prevents corrosion on the stainless steel models
• Dials up to 5 emergency numbers
• E-1600-20-IP and E-1600-52-IP dial up to 5 non-emergency "INFO™ numbers
• Cycles through backup phone numbers on busy or no-answer
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range (-15™F to 130™F)
• 11 different chassis or board only available
• Available in 42™ tower phone model E-1600-BLT-IP-EWP (DOD# 217)
• Optional PB-100 Polling System available (DOD# 232)
• Optional SL-2 or BLK-4-EWP strobe light kit available (DOD# 242/653)
• Optional E-1600A-MK-GNP Pedestal Mounting Kit (DOD# 227)

Specifications

• Power: PoE class 1 (<4 watts)
• Dimensions: See Installation and Specifications
• Operating Temperature: -26™ C to 54™ C (-15™F to 130™F)
• Humidity - Standard Products: 5% to 95% non-condensing
• Humidity - EWP Products: Up to 100%
• Audio Codecs: G711u, G711a, G722
• Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
