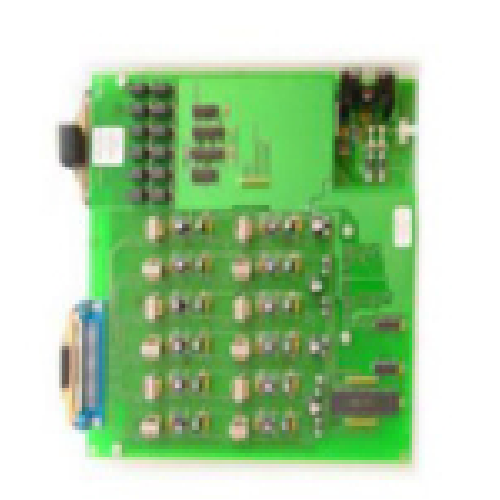

Multipath 24 Point One Way Paging Expansion Card
MultiPath Communications System is a high-performance microprocessor controlled communications system designed for the needs of large facilities. It combines the features of an electronic telephone system with the capabilities of a sound and program distribution system, and includes emergency all call paging and alarm functions.
Features:
- Supports up to 4 administrative ports for communications between administrators and zones
- Each administrative port can be connected to a single line telephone, key system, or PBX as required for unlimited answering positions
- Includes eight audio paths to simultaneously allow any combination of administrative phone and zone communications, paging, scheduled tones, and distribution of program material
- Each zone is equipped with one or more loudspeakers to receive scheduled tones, program material, such as background music, emergency tones, page announcements and intercom
- Equipped with call in switches, and supports both one-way and talkback speakers and horns to provide audio to production areas, hallways, outside locations, individual offices or classrooms
- System configuration is easily changed or upgraded
- (8) User defined relay outputs
- (6) User defined switch inputs
- (3) Auxiliary music inputs
- (1) Microphone input
- (1) BD-9 serial port for administration
- (1) Ethernet port for network administration
- (1) Real Time Clock
- (1) 4 telephone interface circuits
- (1) Speaker Outputs (quantity varies from 24 to 360)
- (1) Call Button Input (talkback systems) or Zone Relay Outputs (one way) per zone
- (1) 8 Time Schedules
- (1) Numerous Built In Tones for Alerts
V-PR72 Includes:
- (1)V-CPU4 System CPU Board
- (3)V-STX 24 Point One-Way Paging Expansion Card
- (1)V-MCRK 9 Position Rack Mount and Power Harness
- (1)V-MPT Windows Programming Tool
- (2)V-C6124P 6 AMP Wall Mount Power Supply
- (1)VC40R-4 4 Position Back Plane Cable
