VCAM-2-BN

SKU: VCAM-2-BN
Viking Electronics Oil Rubbed Bronze Single Gang Mountable Camera
List Price: $414.76
Price: $275.00
You Save: $139.76 (34%)
VCAM-2-BN
VCAM-2-BN
Product Details
The VCAM-1 and VCAM-1IR are high resolution color composite video cameras. Their compact size will allow mounting in even the smallest locations. The extreme temperature rating of this camera, makes it ideal for mounting in outdoor locations in a water tight enclosure.

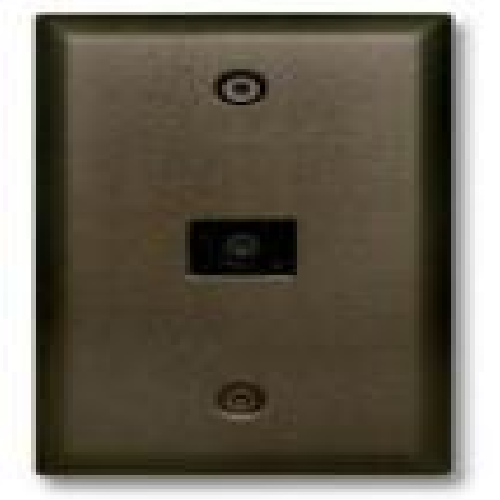

The VCAM-2 is a compact, high resolution color composite video camera mounted behind a standard single gang wall plate. The VCAM-2 is available in two finishes: Brushed Stainless Steel (VCAM-2-SS) and Oil Rubbed Bronze (VCAM-2-BN). The extreme temperature rating and Enhanced Weather Protection make this camera ideal for mounting in outdoor locations.

The VCAM-1 is not compatible with IR illuminators and is a direct replacement for the cameras included in the following Viking models: AES-2005, E-35, E-50, E-65, E-75, K-1205, K-1705-3 and W-3005.

The VCAM-1IR has a day/night OLP (optical low pass) filter and is compatible with standard 840-850nM IR illuminators. The VCAM-1IR is the same size as the VCAM-1 allowing it to be used in all of the above Viking products.

All cameras are equipped with Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed to precipitation or condensation. The VCAM-1, VCAM-1IR and VCAM-2 feature sealed connections, as well as an epoxy potted circuit board.

Applications
  • Door entry
  • Gate entry
  • Covert surveillance

Features

    VCAM-1 / VCAM-1-IR / VCAM-2 Features:

  • High resolution color composite video camera with wide 70° viewing angle, tilt/swivel adjustments, and wide operating temperature range
  • Designed for outdoor use, all cameras come standard with Enhanced Weather Protection (EWP), see DOD# 859 for more information
  • All cameras designed to meet IP66 Ingress Protection Rating
  • 5V DC adapter and wire connectors included
  • VCAM-1-IR only: IR illuminator compatible

    VCAM-2 Features:

  • Compact size: Front panel is the size of a typical single gang midsize wall plate
  • Mounting: Flush mount in a single gang electrical box (2.25” deep x 2.00” wide x 2.84” tall min) electrical box or surface mount in a Viking model VE-3x5 (not included, see DOD# 424)
  • Available in 2 standard faceplate finishes: Brushed Stainless Steel and Oil Rubbed Bronze
  • PNL-VCAM-2 faceplates: Replacement faceplates with matching screws available in both finishes
  • Vandal Resistant Features: 18 gauge 304 stainless steel faceplate, stainless steel camera mounting plate, scratch resistant powder coating, impact and scratch resistant camera lens, and hex drive mounting screws
  • Weather Resistant Features: Faceplate gasket, sealed camera lens, potted camera circuit board, stainless steel camera mounting hardware
  • VCAM-2-BN only: UV stable weather resistant powder coating

Specifications

  • Shipping Weight: VCAM-1 / VCAM-1-IR: 0.23 kg (0.5 lbs), VCAM-2: 0.36 kg (0.8 lbs)
  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
  • Connections: (3) gel-filled butt connectors (3M Scotchlok UR2)
