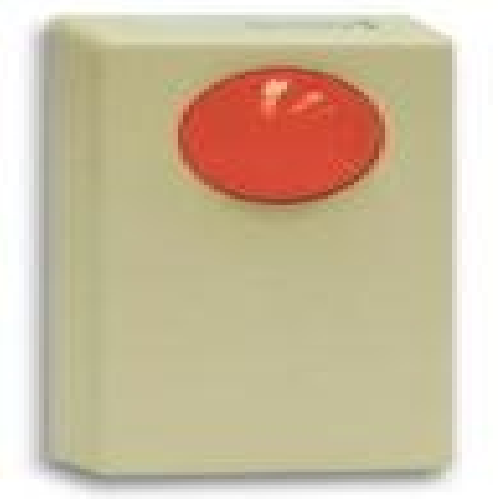

The Viking model LPL-1 connects to any standard analog phone line or phone system’s analog station port* to provide visual "Ring” Indication, "On The Phone” indication and "Message Waiting**” indication. The LPL-1 won’t have you guessing which phone is ringing in busy offices. The large flashing LED can be seen up to 100 feet away. When used with a headset on an analog phone, you can end those nagging interruptions that occur when associates don’t realize you are on the phone because you are using a headset. The LPL-1 will light steady indicating to everyone that you are on the phone, flash during ringing or fast flash to indicate message waiting**.
*Caution: The LPL-1 is not compatible with digital station ports.
**When installed on phone systems with standard 90VDC message waiting voltage.
Applications
- Hearing impaired locations
- Call centers
- Telemarketing
- Product support groups
- Office cubicles
- CO based voice messaging
- Purchasing departments
-
Sales offices
Features
Specifications
- Input: 80V DC to 150V DC message waiting voltage, minimum 40V AC ring voltage
- Viewing Distance: 100 ft typical
- Viewing Angle: 180° typical
- Visual Indicator: 19mm (0.75”) high intensity red LED
- Dimensions: 65mm x 35mm x 20mm (2.56” x 1.38” x .79”)
- Shipping Weight: 0.45 kg (1 lbs)
- Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity
- Cover Color: Beige
- Connections: (1) RJ11 jack, (2) cage clamp terminals
