LC-3

Our Products: Paging/Speakers/Horns > Speakers
SKU: LC-3
Brand: Viking Electronics
Viking Electronics Allow Three Emergency Phones to Share a Single Line
UPC: 615687224788
List Price: $474.00
Price: $239.95
You Save: $234.05 (49%)
Add to Wishlist Add to Wishlist
LC-3
LC-3
Previous Item Previous Item   Next Item Next Item
Product Details

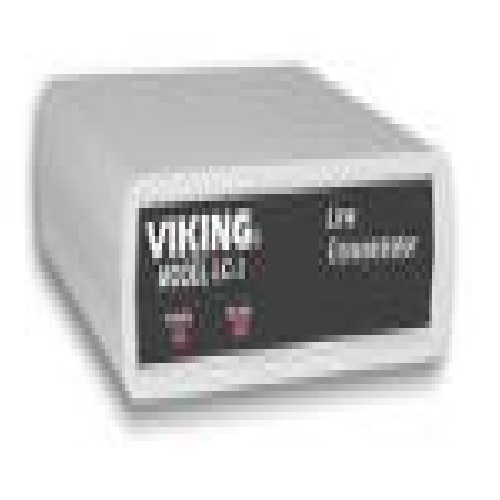

The LC-3 Line Concentrator allows up to three emergency phones to share a single line. A call initiated by any emergency phone is given the line. If a second emergency phone attempts to make a call while another emergency call is in use, the LC-3 will provide a busy signal until the line is available. Viking emergency phones can be programmed to redial on busy.

All inbound calls are answered by the LC-3. The emergency personnel then dials a touch tone command to connect to one of three phones.

A Fire Floor Phone port is provided as a means for local dedicated telephones to directly connect to any of the three emergency phones.

A secondary mode of operation allows two emergency phones to share an existing analog line of a phone system.
™
Applications
  • Sharing one line with three Emergency Phones
  • Where elevator code requires a ™means for emergency personnel within the building to establish two way voice communication to each car individually™

Features

  • Automatic answering of inbound calls
  • Inbound calls can be Touch Tone transferred to any port
  • Connects up to 3 emergency phones, or 2 phones can share a line with a phone system
  • Fire Floor Phone port provided to meet elevator code
  • Modular connection for easy installation
  • During power outages, the emergency phones are all connected to the phone line

Specifications

  • Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
  • Dimensions: 127mm x 127mm x 38mm (5™ x 5™ x 1.5™)
  • Shipping Weight: 0.9 Kg (2 lbs)
  • Environmental: 0™C to 32™C (32™F to 90™F) with 5% to 95% non-condensing humidity
  • Talk Battery Voltage: 32VDC
  • Connections: (5) RJ-11 modular jacks
