M300

SKU: M300
Brand: Bogen
POWER AMP,STEREO 300W/CH,MONO 600W,MOD INPUTS M300 600W mono power level for 70V speaker systems, 300W per channel, Mod Inputs Other, UPC: 765368391046
List Price: $1,962.00
Price: $810.00
You Save: $1,152.00 (59%)
M300
M300
Product Details
POWER AMP,STEREO 300W/CH,MONO 600W,MOD INPUTS

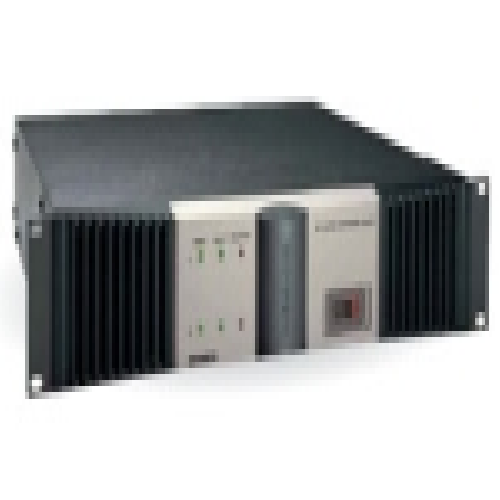

The M300 from Bogen is a Power Amplifier that produces 300W stereo and 600W mono power. This powerful amp is flexible and reliable for a variety of professional installations. The M300 relies on a massive power toroid, heat sinks, Back-Slope AC voltage stabilization in a heavy duty 14-gauge chassis. 3 modes of operation are available including 70V mono, dual mono and stereo plus 2 modular input bays for prioritized inputs. This full featured amp is packaged in only 2 rack spaces and can be stacked above or below without extra space.

• 3 selectable low-frequency roll-off choices at flat/65/125Hz
• 2x1 mixer function when in mono modes
• Post- and Pre-EQ Output Feeds (in mono mode)
• DC, overload, and thermal protection circuits
• Back-Slope AC voltage stabilization provides dependable performance even with varying AC line voltages
Power Rating
600W @ 8 ohms
300W per channel
200W per channel
Damping Factor
Not specified by the manufacturer
Input Sensitivity
0.840V for 300W @ 4 ohms
Input Impedance
4-8 ohms, 70V
Gain
Not specified by the manufacturer
Frequency Response
20Hz-20kHz
Signal-to-Noise Ratio
103 dB ref. 8 ohms, F.P.
Total Harmonic Distortion (THD)
<.02%
Input Connections
2 new Bogen std. 12-pin connector modules/RCA input
Output Connectors
5-pin "touch-proof" Barrier Strip, RCA Pre- & Post-EQ Output
Controls Front Panel
Power on/off
Volume Control
Controls (Rear)
Channel Balance
Lo-Cut Filter
Impedance Selector
Indicators
Status (On/Protect/Sleep), Clip/Limit, Signal
Cooling
Forced Air Variable Speed Fan
Power Consumption
12A
Power Requirements
95-130VAC/60Hz
Dimensions
17 x 3.5 x 16" (431.8 x 88.9 x 406.4mm)
Weight
41 lbs (18.6kg)
Specialties
2 module bays
