| Provide Talk Battery and Ring Voltage to Equipment that Requires it!

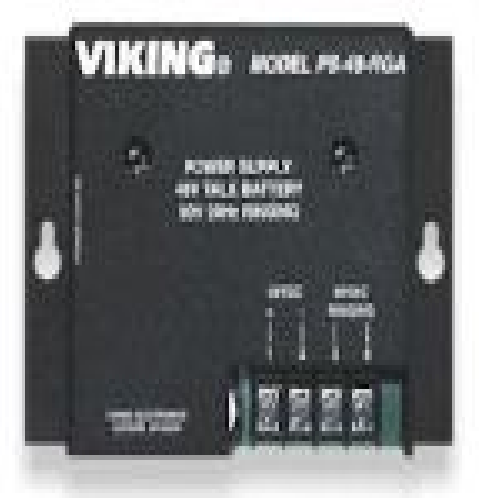

The PS-48-RGA power supply provides talk battery plus standard ring voltage where and when needed. Housed in a convenient wall mount enclosure, the PS-48-RGA comes complete with a plug-in power supply.
The PS-48-RGA will provide telephone communication equipment with 48V DC talk battery.
In addition, the PS-48-RGA will produce 90V 20 Hz sine wave ring voltage rated up to 10 REN. This allows a phone system to sequence up to 30 ringing phones.
|
Applications
- Electronic Key Systems
- Paging systems
- OPX's
|
Features
- Provides 48V talk battery
- Provides 90V ring voltage
- 1 Year Warranty
- Made in USA
|
Specifications
- Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
- Dimensions: 135mm x 90mm x 45mm (5.25” x 3.5” x 1.73”)
- Shipping Weight: 0.9 kg (2 lbs)
- Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity
- DC Power: 48V DC (nominal, 150mA maximum current)
- Ringing Power: 90V AC @ 20 Hz, capable of ringing 5 REN with DC power fully loaded, capable of ringing 10 REN with DC power not used
- Connections: 4 position screw terminal
|
