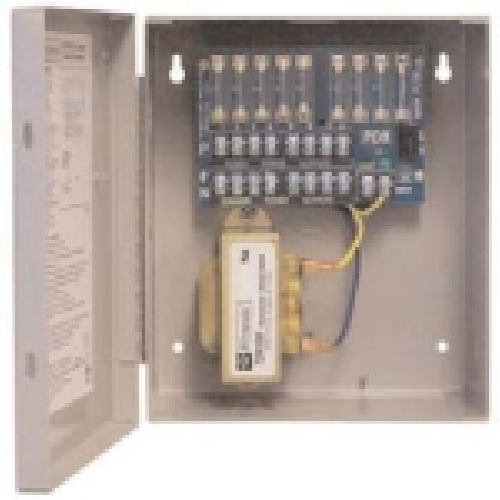

| CCTV Camera & Accessory Power Supply The Altronix ALTV248 CCTV Power Supply is designed with eight (8) individually fused outputs for powering CCTV Cameras and other video accessories. It will provide 24VAC distributed via eight (8) fused outputs with a total of 4 amps continuous supply current.
• Input 115VAC 50 / 60 Hz, .9 amps
• 4 amps (100VA) supply current
• Eight (8) 24VAC individually fused outputs
• Output fuses are rated at 3.5 amps / 250VAC. (see Fig. 1, #4).
• Main fuses are rated at 5 amps / 250VAC. (see Fig. 1, #5).
• AC power LED indicator
• Power ON/OFF switch
• Spare fuse included
• Surge protected outputs
• Unit maintains camera synchronization
• Ease of installation saves time and eliminates costly labor
Enclosure dimensions: 8.5"H x 7.5"W x 3.5"D |
