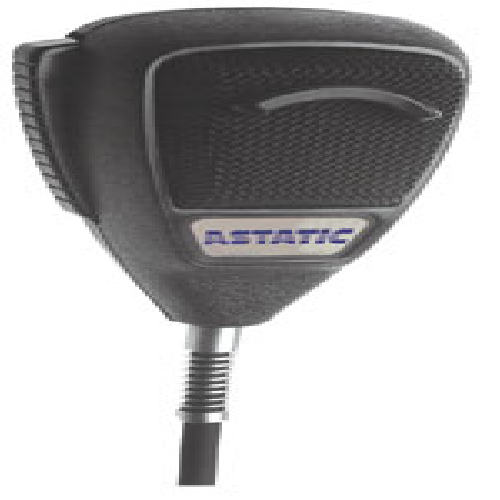

The 631L is designed for close talking, handheld applications in quality sound installations where background noise is a problem. The frequency response, especially tailored for voice communications, provides a crisp, clear, highly intelligible sound with 360 degrees minimization of background noise. A soft lip guard is positioned to assure proper close talk voice spacing by the operator. The dynamic cartridge has a rugged polyester diaphragm which resists moisture, temperature extremes, most acids, alkalines and solvents. Molded in high impact Cycolac, the 631L comes with a permanently attached, heavy duty, four conductor, two shielded coil cord. The low impedance 631L has a DPDT long life, trouble-free switch and is factory wired normally open. Features: For close talking/paging applications in security, mobile communications, emergency, bus call stations. 360
UPC 631922101799
Specifications Element:
Dynamic noise cancelling Frequency Response: 100 to 5000 Hz Output Level: -58 dB (0 dB = 1mw / 10 microbars) -80 dB (0 dB = 1 volt / microbar) 1.0 mV/PA Impedance: 200 ohms, matches 50 to 1000 ohms
Cable: Four conductor, two shielded, permanently attached, heavy duty, coil cord that extends to 1.8m (6 ft.)
Switch: Operated by press-to-talk lever, DPDT long life, trouble free switch with spring return, has smooth feel. Wired normally open
Housing: Durable molded black
Cycolac Dimensions: 100mm (3-15/16") high x 75.4mm (2-3/32) wide x 66.7mm (2-5/8") deep Weight: 284 grams (10 oz.)
