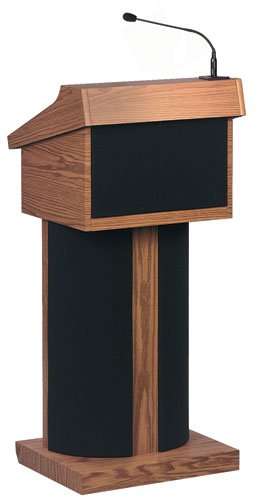

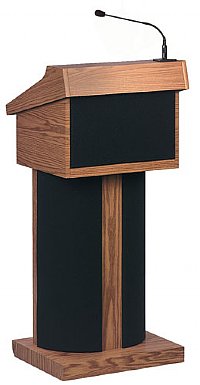

Bogen’s MLA lecterns represent an innovative approach to podium and table-top lectern design. The multi-speaker array concept offers wider horizontal dispersion than traditional podium style lecterns. The modular design ensures flexibility. Performance advantages make it well suited for demanding applications in schools, churches, hotel and rental situations. The MLA40 is a free-standing lectern that can also be configured for tabletop use.





Product Name	Bogen Communications MLA40 Lectern Array
Rated Power Output	40 Watts RMS
Frequency Response	20 Hz to 20 kHz ±1 dB at -2 dB < rated power
THD	Less than 0.5%, 20 Hz to 20 kHz at -2 dB < rated power
Hum and Noise (20 Hz to 20 kHz)a	MIC: -55 dB below rated output, Aux: -70 dB below rated output
Input Connections	MIC 1/Lectern Mic: 3-pin, AUX: RCA jack (mono
Input Sensitivity	MIC: Lo-Z (250 Ohm), balanced, 800 mV, AUX: Hi-Z (10 KOhm), unbalanced > 85 mV
Microphone	High-quality cardioid condenser microphone
Tone Control Action	Treble ±11dB at 10 kHz, Bass ±11dB at 100 Hz
ALC	Switch in/out
Speech Filter	-15 dB at 80 Hz
Volume Controls	MIC 1, Lectern Mic, Aux
Tone Controls	Bass and Treble
Switches	Phantom Power, ALC, Speech Filter, Power
External Speaker Impedance	16 Ohm (minimum
External Speaker Impedance	16 Ohm (minimum
Tape Output	500 mV
Output Connections	Tape Out — RCA jack, Speaker Out (2) — 1/4 inches mono phone jack
Auxiliary AC Power	300 Watts maximum, unswitched
Dimensions	21.6 x 48.0 x 19.5 inches
Warranty
Factory Sealed/Open Box Warranty:	1 Year
