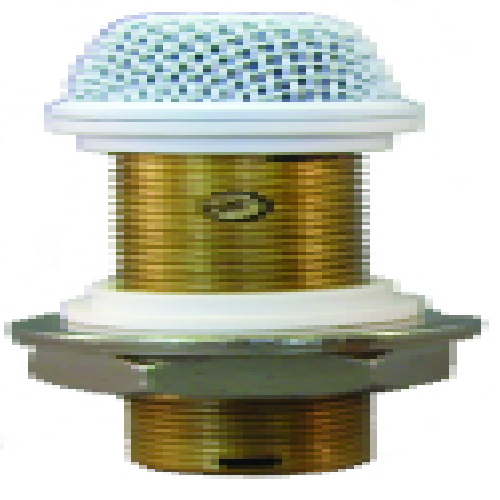

Astatic Variable Polar Pattern/Boundary Series WHITE/Palmheld Series - 220VPW

The integral 80Hz, 12dB/octave high-pass filter removes unwanted low-frequency energy to improve intelligibility. The all metal, threaded body and shock-absorbing bushings make for easy installation in surfaces up to 3" thick.

When mounted on a hard surface, the 220VPW will take advantage of the "boundary effect" signal-to-noise ratio increase. The 220VP is terminated with a standard 3-pin XLRM-type connector recessed in the body of the microphone.

The 220VP features a continuously-variable polar pattern so it can shorten the list of products an audio system designer needs to consider when boundary condenser microphones are specified. The installer can precisely tailor the polar pattern for the best performance depending upon the application or environment. The 220VP is primarily designed for speech and vocal pickup in governmental, institutional, religious and business applications.

Specifications:
Operating Principle: Condenser
Polar Pattern: Continuously-variable
Frequency Response: 90Hz -17KHz
Sensitivity: -32dBV (25mV) @ 1 Pa
Impedance: 120 ohms
Maximum SPL: 120dB, 1% T.H.D., 1KHz
Self Noise: 18dBA
Power Requirements: P12, P24, P48, 4mA
Connector: 3-pin XLRM-type
Polarity: Positive pressure on diaphragm corresponds to positive voltage on pin 2 relative to pin 3 at XLR3M-type connector.
Finish: Durable urethane white (220VPW)
RF Immunity: Meets or exceeds EN55103-2,E1, E2, E3 and E4
RoHS Compliant
