APSINT3636VR

SKU: APSINT3636VR

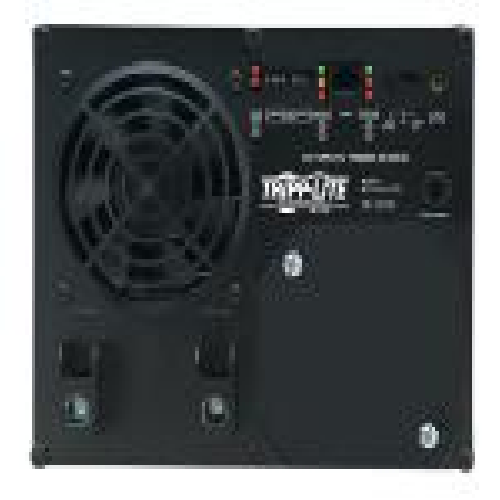

Tripp Lite PowerVerter® APS INT Series 3600W Inverter/Charger with Auto-Transfer Switching and Line Interactive Voltage Regulation
List Price: $1,617.00
Price: $1,069.18
You Save: $547.82 (34%)
APSINT3636VR
APSINT3636VR
Product Details
Tripp Lite's APSINT3636VR DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 3600 watts of continuous 230V AC power from any 36V battery or automotive DC source. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 30 amp charging system. In UPS mode, the APS system responds to blackouts and severe voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utilty or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Built-in Automatic Voltage Regulation (AVR) corrects line power AC brownouts and overvoltages without using battery power during battery charging and UPS standby modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Included APSRM4 wired remote power switch with full status LEDs provides remote

Features:
  • DC Input: Requires 36 VDC input source capable of delivering 114 A
  • AC Input: 230 VAC
  • AC Output: 230 VAC nominal
  • DC Charger Output: 36 VDC nominal
  • DC Input connection type: Set of DC bolt-down terminals
  • AC Input connection type: Hardwire via built in junction box with cover plate
  • Cooling method: Fan
  • Transfer time from line power to battery mode: 4 to 6 milliseconds
  • Low voltage transfer to battery power: User configurable to 144V, 163V, 182V & 201V
  • High voltage transfer to battery power: User configurable to 259 to 278V
  • Frequency control for operating stability
  • Resettable circuit breaker protects APS against system overload
  • RJ45 port allows connection of APS remote switch (part# APSRM)
  • Switch allows user to select between off, auto-invert and charge-only settings
  • Advanced 30 amp, 3-stage battery charger and selector switch for gel or wet cell batteries
  • Allows unlimited runtime capability by allowing the use any number of user-supplied batteries
  • Battery runtime is dependent upon the size and number of user-supplied batteries in 36-volt configuration
  • Overload protection: Includes 12 A input breaker dedicated to the charging system and 20 A output breaker for AC output loads
