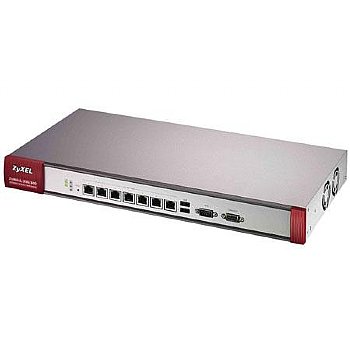

The ZyWALL USG (Unified Security Gateway) 300 (ZYUSG300TS) is the "third generation" ZyWALL featuring an all-new platform. It provides the performance 22 times faster than the previous-generation ZyWALL firewalls, as well as a deep packet inspection security solution for small businesses to enterprises alike. This multilayered security safeguards your organization's customer and company records, intellectual property and critical resources from external and internal threats.
Features:
|
|
Hybrid VPN, both SSL and IPSec VPNs supported for flexible deployment |
|
|
Comprehensive threat protection with firewall, VPN, anti-virus, content filtering, Intrusion detection and prevention to secure front line threats |
|
|
IM/P2P management can prevent P2P or Instant Messaging applications to increase productivity |
|
|
Flexible security zone using VLAN technology to segregate local networks |
|
|
User-aware policy engine can set bandwidth or network access based on user login |
|
|
Bandwidth management for traffic prioritization for VoIP or mission critical applications |
|
|
Network resilience with multiple WANs, 3G cellular support and device high availability |
Specifications:
| Gateway Anti-Virus |
Stream-Based Gateway Anti-Virus Powered by Kaspersky Labs
Covers Top Active Viruses in the Wild List
Scans HTTP / FTP / SMTP / POP3 / IMAP4
Automatic Signature Update
No File Size Limitation
Blacklist / Whitelist |
| Intrusion Detection and Prevention |
In-line Mode (Routing / Bridge)
Zone-Based IDP Inspection
Customizable Protection Profile
Signature-Based Deep Packet Inspection
Automatic Signature Update
Custom Signatures
Traffic Anomaly: Scanning Detection and Flood Protection
Protocol Anomaly: HTTP / ICMP / TCP / UDP |
| Content Filter |
URL Blocking, Keyword Blocking
A Exempt List (Blacklist and Whitelist)
Blocks Java Applet, Cookies and Active X
Dynamic URL Filtering Database (BlueCoat) |
| Networking |
Routing Mode / Bridge Mode / Mixed Mode
Layer 2 Port Grouping
Ethernet / PPPoE / PPTP
Tagged VLAN (802.1Q)
Virtual Interface (Alias Interface)
Policy-Based Routing (User-Aware)
Policy-Based NAT (SNAT / DNAT)
RIP v1 / v2
OSPF
IP Multicasting (IGMP v1 / v2)
DHCP Client / Server / Relay
Built-in DNS Server
Dynamic DNS |
| Bandwidth Management |
Bandwidth Priority
Policy-Based Traffic Shaping
Maximum / Guaranteed Bandwidth
Bandwidth Borrowing |
| Authentication |
Internal User Database
Microsoft Windows Active Directory
External LDAP / RADIUS User Database
ZyWALL OTP (One Time Password)
Force User Authentication (Transparent Authentication) |
| High Availability |
Device HA (Active-Passive Mode)
Device Failure Detection
Link Monitoring
Auto-Sync Configurations
Multiple WAN Load Balancing
VPN HA (Redundant Remote VPN Gateways) |
| System Management 1 |
Role-Based Administration
Simultaneous Administrative Logins
Multi-Lingual Web GUI (HTTPS / HTTP)
Object-Based Configuration
Command Line Interface (Console / WebConsole / SSH / TELNET)
Comprehensive Local Logging |
| System Management 2 |
Syslog (4 Servers)
E-mail Alert (2 Servers)
SNMP v2c (MIB-II)
Real-Time Traffic Monitoring
System Configuration Rollback
Text-Based Configuration File
Firmware upgrade via FTP / FTP-TLS / Web GUI
Advanced Reporting (Vantage Report 3.1)
Centralized Network Management (Vantage CNM 3.0) |
| Memory |
256MB RAM / 256MB Flash |
| Interface |
GbE x 7 (RJ-45, with LED) |
| Auto-Negotiation and Auto MDI/MDI-X |
Yes |
| A Console |
RS-232 (DB9F) |
| AUX |
RS-232 (DB9M) |
| LED Indicator |
PWR, SYS, AUX, CARD1, CARD2 |
| Power Switch |
Yes |
| Reset Pinhole |
Yes |
| Extension Card Slot |
Yes (2) |
| USB |
Yes (2) |
| Rack Mountable |
Yes (19-inch, rack-mount kit included) |
| Input Voltage |
100-240VAC, 50/60Hz, 0.55-0.3A |
| Power Rating |
35W Max |
| Operating Temperature |
32deg. F - 122deg. F / 0deg. C - 50deg. C |
| Storage Temperature |
-22deg. F - 140deg. F / -30deg. C - 60deg. C |
| Humidity |
20% to 95% (non-condensing) |
| Dimensions (W x D x H) |
17" x 8.3" x 1.7" / 430.0 x 201.2 x 42.0 mm |
| Weight |
6.2lbs / 2800g |
|
|
