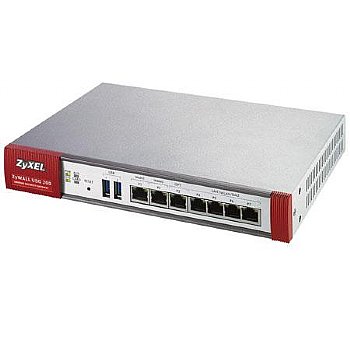

The ZyWALL USG (Unified Security Gateway) 200 (ZYUSG200TS) is the "third generation" ZyWALL featuring an all-new platform. It provides the performance 22 times faster than the previous-generation ZyWALL firewalls, as well as a deep packet inspection security solution for small businesses to enterprises alike. This multilayered security safeguards your organization's customer and company records, intellectual property and critical resources from external and internal threats.





	The ICSA-certified, stateful inspection firewall protects the network and vital Internet services like e-mail, Web browsing, servers and file transfers
	For protection against viruses and spyware, choose the ICSA-certified ZyXEL Anti-Virus or one powered by Kaspersky Labs
	The IDP engine protects your network from intrusions such as Trojans and worms
	Use IPSec VPN to secure connections to branch offices, partners and headquarters. Road warriors and telecommuters can use SSL or L2TP VPN to securely access the company network without having to install VPN software
	Application Patrol controls who can use what IM and P2P applications like MSN and BitTorrent and even who can use specific features within an application
	The anti-spam feature can tag or discard unsolicited commercial or junk e-mail
	User-aware configuration lets you control access to applications or resources and apply security scans by user or user group
	Bandwidth management lets you prioritize time-sensitive applications like VoIP and video conferencing
	Multiple WAN ports let you use multiple ISP links and load balancing to enhance traffic. Throughput, optimize bandwidth usage and help ensure continuous uptime if a link goes down
	Along with your regular user name and password, use the ZyWALL OTP (One Time Password). hardware token to generate a new PIN code each time you log in
	Use the extension card slot and USB ports for multiple 3G wireless WAN connections
	Network Connectivity: The seven Gigabit Ethernet ports include two WAN ports. The ZyWALL USG 200 OPT port can be used as another WAN,LAN,WLAN, or DMZ port





Intrusion Detection and Prevention	In-line Mode (Routing/Bridge) Zone-Based IDP Inspection Customizable Protection Profile Signature-based Deep Packet Inspection Automatic Signature Updates** Custom Signatures Traffic Anomaly Detection and Protection Flooding Detection and Protection Protocol Anomaly Detection and Protection: HTTP/ICMP/TCP/UDP
Anti-Virus	ICSA-Certified ZyXEL Anti-Virus or Kaspersky Anti-Virus Stream-Based Anti-Virus Covers Top Active Viruses in the Wild List Scans HTTP/FTP/SMTP/POP3/IMAP4 Automatic Signature Updates** No File Size Limitation Blacklist/Whitelist Support
Content Filtering	URL Blocking, Keyword Blocking Exempt List (Blacklist and Whitelist) Blocks Java Applet, Cookies and Active X Dynamic URL Filtering Database (Powered by BlueCoat)**
User Licenses	Unlimited
Networking	Routing Mode/Bridge Mode/Mixed Mode Layer 2 Port Grouping Ethernet/PPPoE/PPTP Tagged VLAN (802.1Q) Virtual Interface (Alias Interface) Policy-Based Routing (User-Aware) Policy-Based NAT (SNAT/DNAT) RIP v1/v2 OSPF IP Multicasting (IGMP v1/v2) DHCP Client/Server/Relay Built-in DNS Server Dynamic DNS
Authentication	Internal User Database Microsoft Windows Active Directory External LDAP/RADIUS User Database ZyWALL OTP (One Time Password)*** Forced User Authentication (Transparent Authentication)
System Management 1	Role-Based Administration Multiple Administrator Login Multi-Lingual Web GUI (HTTPS/HTTP) Object-Based Configuration Command Line Interface (Console/Web Console/SSH/TELNET) Comprehensive Local Logging Syslog (send to up to 4 servers)
System Management 2	E-mail Alert (send to up to 2 servers) SNMP v2c (MIB-II) Real-Time Traffic Monitoring System Configuration Rollback Text-Based Configuration File Firmware upgrade via FTP/FTP-TLS/Web GUI Advanced Reporting (Vantage Report) Centralized Network Management (Vantage CNM)
3G Support	Advanced Wireless Security Transmission with WEP Encryption and WPA/WPA2 Support PCMCIA: Sierra Wireless AC850 USB: Huawei E220
HSF (Hazardous Substance Free)	RoHS and WEEE
EMC	FCC Part 15 Class B, CE-EMC Class B, C-Tick Class B, VCCI Class B
Safety	CSA International (ANS/UL60950-1,CSA60950-1, EN60950-1, IEC60950-1)
Memory size	256 MB DDR2 RAM/256 MB Flash
Interface	GbE x 7 (RJ-45) 2 x WAN, 1 x OPT, 4 x LAN/DMZ/WLAN
Interface	Auto-negotiation and Auto MDI/MDI-X
Console	RS-232 (DB9F)
AUX	RS-232 (DB9M)
LED Indicator	PWR, SYS, AUX, CARD
USB Ports	2
Operating temperature	0Adeg. C - 50Adeg. C/32Adeg. F - 122Adeg. F
Storage temperature	-30Adeg. C - 60Adeg. C/-22Adeg. F - 140Adeg. F
Operating humidity	5% - 90% (noncondensing)
Input	100 - 240 V; 1.2 A, 50 - 60 Hz
Output	12 V; 3.5 A
Dimensions (W x D x H)	242 x 175 x 35.5 mm/9.5 x 6.9 x 1.4 inch
Weight	1.2 Kg/2.6 lbs
