Loop bonding technology provides the telecom industry with a revolutionary technique to combine multiple ADSL2+ connections into a single, aggregated connection. Supporting up to ultra-high 48Mbps downstream and 2Mbps upstream data rates, as well as high-speed data and derived voice applications, service providers can offer advanced bandwidth-dependent services such as broadcast video and video on demand (VOD) to customers beyond the reach of central offices or digital loop carriers. Bonded ADSL2+ supports multiple high-definition television streams at significantly longer distances than other existing xDSL technologies.

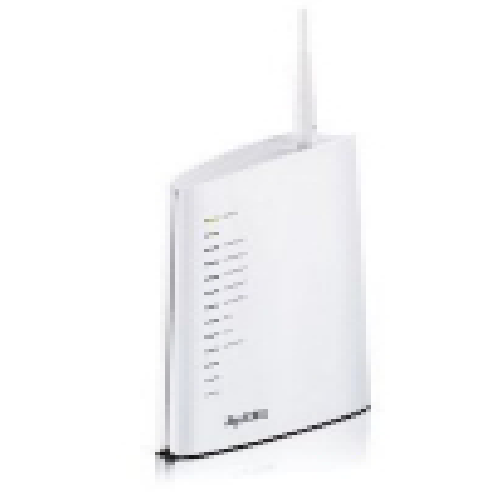

The P-663HN-51 featuring 802.11n Draft 2.0 technology provides an ultimate solution for both speed and coverage. With data rates up to 300 Mbps, the P-663HN-51 provides stable and reliable wireless connections for high-speed data and multimedia delivery. It eliminates dead zones and extends coverage by employing the IEEE 802.11n technology while retaining backward-compatibility with any IEEE 802.11b/g Wi-Fi certified device.

Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. WPS automatically configures new wireless networks, adds new devices and enforces security with strong encryption and authentication. WPS makes the configuration of secure personal wireless networks as simple as pushing a button or entering a Personal Identification Number (PIN) code.





	High-speed ADSL2+ bonded Internet Access
	802.11n wireless connectivity
	Stateful Packet Inspection and Anti Denial-of-Service attack
	Flexible QoS function for multiple services: The P-663HN-51 comes with complete ATM and Ethernet QoS mechanisms, as well as various IP QoS features (Packet classification/Rate Limitation/Queue Scheduling)
	TR-069 remote management: P-663HN-51 provides Broadband Forum-compliant TR-069 remote management functionality speeding up deployment tasks when paired with the default Auto-Configuration Server (ACS) for auto-configuration and dynamic service provisioning





ADSL Compliance 1	G.992.1(G.dmt), Annex A compliant G.992.2(G.lite), Annex A compliant ANSI T1.413 compliant G.992.3(ADSL2) compliant, Annex A, L and M G.992.5(ADSL2+) compliant, Annex A, L and M G.998.1(G.bond-ATM) ATM-based multi-pair bonding I.432 ATM physical layer compliant Reach-Extended ADSL (RE ADSL) ADSL physical connection ATM AAL5 (ATM Adaptation Layer type 5)
ADSL Compliance 2	Supports multi-protocol over AAL5 (RFC2684/1483) PPP over ATM AAL5 (RFC2364) Supports VC-based and LLC-based multiplexing ATM traffic shaping (CBR, VBR-rt/nrt, UBR ) I.610 F4/F5 OAM Broadcom PhyR, PHY level retransmission technology
Wireless	IEEE 802.11n draft 2.0 compliance, backward compatible with 11b/g Data rates: 300 Mbps and auto fallback support Frequency range: 2.4 GHz MAC Address filter: 32 WEP data encryption 64/128bit WPA/ WPA-PSK WPA2/WPA2-PSK Auto channel selection Multiple SSID (4) Wireless Distribution System (WDS) WMM QoS support Wireless Protected Setup (WPS) IEEE 802.1x (EAP-MD5, TLS and TTLS)
Switch	IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTx Ethernet Flow control in full duplex mode Back pressure in half duplex mode
Bridge/Router Functions	IEEE 802.1D transparent bridge PPPoE client (RFC 2516) DHCP client/server/relay DNS proxy Dynamic DNS RIP I/ RIP II supported IGMP v1, v2, v3 IGMP snooping and proxy MAC encapsulation routing / IPoE
QoS	Supports flexible packet classification Supports 4 priority queue with strict priority scheme Supports tag processing Queuing and scheduling
Security	PAP/CHAP MS-CHAP v1/v2
Firewall	DoS prevention Stateful packet inspection At least 20 ACL rules Protocol and generic packet filter SIP ALG
Management	HTTP Web GUI Command Line Interpreter (CLI) Secure Shell function (SSH) ROM-D Flexible remote management by protocol (Web/Telnet/FTP) Configurable access control for remote management by interface (LAN/WAN/WLAN) Firmware upgrade via Web/FTP/TFTP Text based configuration SNMP v1, v2 with MIB II Broadband Forum TR-069 (w/ HTTPS), TR-098
WAN	One RJ14 interface for ADSL bonding (over POTS)
LAN	Four auto MDI/MDI-X 10/100Base-Tx Ethernet RJ45 ports
Hardware: Wireless	One external 2 dBi non-detachable antenna and One 3dBi internal antenna
WLAN/WPS button	One button for WLAN on-off and WPS configuration
Power Switch	Push type
Reset button	One button for restore factory default settings
Power	12V DC 1500mA
Power supply	120V/230V/240V
Operating Temperature	0deg.C - 40deg.C
Operating Humidity	20% - 85% RH (non-condensing)
Storage Temperature	-20deg.C - 60deg.C
Storage Humidity	20% - 90% RH (non-condensing)
Certifications	EMC: EN55022 Class B EN61000-3-2: 2000 EN61000-3-3: 1995+A1: 2001 FCC Part 15 (Class B) & FCC Part 68 Safety: CSA 60950-1 UL 60950-1 EN 60950-1: 2001+A11 IEC 60950-1: 2001
Dimensions (WxDxH)	241 x 165 x 63mm / 9.49 x 6.49 x 2.48in
Weight	0.59 kg / 1.31lbs
