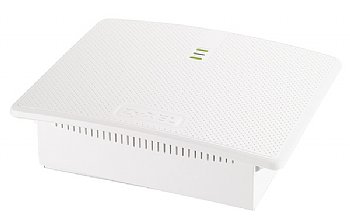

The ZyXEL NWA5160N is a high-performance, 802.11a/g/n support single-radio WLAN Access Point. With the 3 * 3 MIMO design, NWA5160N is capable of delivering wired-like performance at data rate up to 300Mbps. The WLAN Access Point is managed by ZyXEL NXC5200 WLAN Controller. It can provide WLAN access and also can be configured as sensor mode to do air-monitoring, or rogue AP detection & contentment over 2.4GHz & 5GHz spectrum. The ZyXEL NWA5160N works in conjunction with ZyXEL WLAN Controller NXC5200 to deliver optimized performance and secure services.





	The Wi-Fi a/g/n-certified and IEEE 802.11n standard compliant, ZyXEL NWA5160N is a wireless LAN Access Point designed for enterprise environments
	The MIMO (Multiple In, Multiple Out) feature of NWA5160N utilizes a multiple-antenna system to take advantage of the multi-path effect in RF implementations, rather than fighting against it as conventional 802.11 Access Points did
	The NWA5160N is designed with a non-invasive concept that prevents radical image change to enterprise surroundings. Its UL2043-compliant casing has been fire-tested for heat and visible smoke release for discrete products and related accessories installed in air-handling spaces
	The ZyXEL NWA5160N can be powered by standard 802.3af PoE switch which are the main streams in the fields. It also reserves a slot for Kensington lock, which is a wide-used lock system to make sure the safety of computing equipments in public areas





Standard Compliance	Ethernet: IEEE 802.3 & 802.3u 10Base-T & 100Base-TX physical layer specification IEEE 802.3ab (1000BASE-T) IEEE 802.3z (1000Base-SX/ 1000Base-LX) IEEE 802.3af WLAN: IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n
Performance: 11g/n	Indoor: up to 100m Outdoor: up to 400m
Performance: 11a/n	Indoor: up to 80m Outdoor: up to 200m
Security	WLAN Access Control List WEP 64/128 WPA-PSK, WPA2-PSK WPA-Enterprise, WPA2-Enterprise EAP type: EAP-TLS, EAP-TTLS, -PEAP, -SIM, -FAST, -AKA
Ports	1 - auto-negotiating 10/100/1000BASE-T RJ-45 ports Console port Hardware reset button Power over Ethernet, IEEE 802.3af complaint
Operating Temperature	0 - 40 deg.C
Operating Humidity	20% - 95% (non-condensing)
Storage Temperature	-30 - 70 deg.C
Storage Humidity	20% - 95%
Certification	Radio: ETSI EN 300 328 V1.6.1: 11-2004 EN 301 893 V1.2.3:08-2003 FCC Part15C 15.247 FCC Part 15E Industry Canada RSS-210 CISPR22 LP0002 EMC: EN 103 489-1 V1.5.1: 11-2004 EN 301 489-17 V1.2.1: 08-2002 FCC Part 15 (Class B) ICES-003 Safety: EN 60950 Medical: EN 60601-1-2
Dimensions (W x D x H)	225 x178 x60 mm(8.86"x7.01"x2.36")
Weight	1000g(2.21lb)
