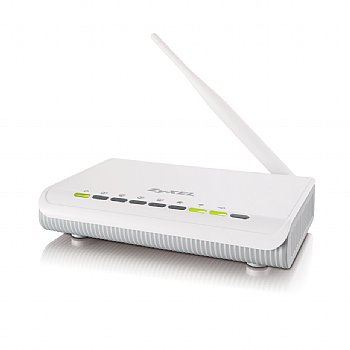

Featuring the 802.11n technology, the ZyXEL NBG-416N Wireless N-lite Home Router is for users upgrading their network to the next generation. With speeds three times faster than the 802.11g standard networks, the NBG-416N provides faster speeds and more stable, reliable wireless connections for data and multimedia streaming. It not only provides you with a better Internet experience, but also offers backward compatibility with the existing 802.11b/g networks.

With the Wi-Fi Multimedia (WMM) technology, the NBG-416N enhances user experiences for audio, video and voice applications over wireless networks with the capability to prioritize different network traffic types for optimized performance. With the rich green features, the NBG-416N not only consumes less power than most home routers on the market, but also smartly adjusts power consumption by detecting the link status and the length of connected Ethernet cables. When the NBG-416N detects no active data transmission, the device automatically enters the power-saving mode to avoid energy waste. In addition, the NBG-416N can also detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the Ethernet cable length is, the less power it consumes.

In order to reduce unnecessary wireless radiation for a more eco-friendly network environment, the wireless scheduler and output power management of NBG-416N enable you to easily control wireless network environments. The desired operating time can be set in a few steps via the Web-based user interface, so the NBG-416N can turn itself on or off according to your wireless usage pattern. This also adds another layer of security, since external access to the device is not possible when the wireless function is deactivated.

With the five-level output power control capability, the NBG-416N makes it easy for users to adjust the output power to reduce interference that affects your neighbors if you live in an area of high AP density. To establish a secure wireless network could not be easier. The WPS button of the NBG-416N enables you to take only a few seconds to set up a secure wireless network. Instead of entering a pass phrase, users can authenticate a new device on the network by pressing a button or by entering an automatically generated PIN code.





	Wireless N technology supports with data transfer rates of up to 150 Mbps
	WMM QoS for multimedia streaming prioritization
	Green router saves energy by detecting link status and cable length
	Wireless scheduler and output power management provide eco-friendly home network environments
	Wi-Fi Protected Setup (WPS) button to simplify secure network setup



Wireless Standard	802.11n technology Backward compatible with 802.11 b/g
Wireless Transfer Rate	Transmit: 150 Mbps Receive: 150 Mbps
Wireless Security	64/128 bit WEP, WPA/WPA2
WLAN	Wi-Fi Protected Setup (WPS) Wi-Fi Multimedia (WMM) Access Point Mode Client Mode Universal Repeater Mode Wireless scheduling Wireless output power management Intra-Bss traffic block Channel auto scan MAC address filtering
Routing	NAT (NAT session: 2000) DHCP server on LAN DHCP client on WAN Connection type: PPPoE, Static IP, Dynamic IP,PPTP IGMP v1/v2 DDNS Port-based QoS Auto-IP change
VPN Pass-through	IPSec PPTP L2TP
Firewall	SPI DOS
System Management	Online auto-upgrade firmware
WAN	One 10/100 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN	Four 10/100 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
LED indicator	Power LAN (1 - 4) WAN WLAN WPS
Power	DC 5 V, 1 A
Operating environment	Temperature: 0deg.C - 40deg.C / 32deg.F - 104deg.F Humidity: 20% - 90% (Non-condensing)
Storage environment	Temperature: -30deg.C - 70deg.C / -22deg.F - 158deg.F Humidity: 20% - 95% (Non-condensing)
Dimensions (W x D x H)	162 x 115 x 33 mm (6.38" x 4.53" x 1.3")
Weight	216 g (0.48 lb)
