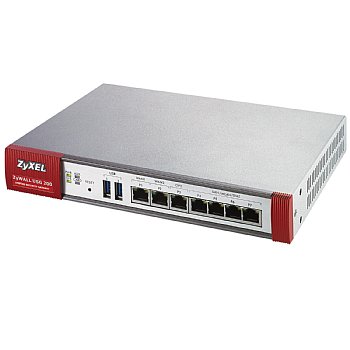

The ZyWALL USG (Unified Security Gateway) 300 ICAV1YUSG300 is the "third generation" ZyWALL featuring an all-new platform. It provides the performance 22 times faster than the previous-generation ZyWALL firewalls, as well as a deep packet inspection security solution for small businesses to enterprises alike. This multilayered security safeguards your organization's customer and company records, intellectual property and critical resources from external and internal threats.





	In addition to basic access control capabilities, the intelligent user-aware policy engine on the ZyWALL USG 300 is designed to make packet-forwarding decisions based on multiple criteria
	The ZyWALL USG 300 provides bandwidth management features for traffic prioritization to guarantee or restrict bandwidth usage per interface/protocol. Security staff can allocate bandwidth for a variety of applications or computer hosts on the corporate network
	ZyWALL USG 300 allows you to keep track of bandwidth usage with comprehensive statistical reports
	As a VoIP-friendly firewall, the ZyWALL USG 300 reduces the security risks associated with the adoption of VoIP by offering the SIP/H.323 ALG feature to dynamically open only the required ports during VoIP calls; once the call is complete
	To minimize the impact of single-point failures, the ZyWALL USG 300 supports device HA (High Availability) to assure network availability should any device failure happen
	The ZyWALL USG 300 can connect multiple ISP links to ensure Internet availability in case a single ISP link becomes unreliable. The multiple-WAN load-balancing feature can also optimize the bandwidth usage over each ISP link





Gateway Anti-Virus	Stream-Based Gateway Anti-Virus Powered by Kaspersky Labs Covers Top Active Viruses in the Wild List Scans HTTP / FTP / SMTP / POP3 / IMAP4 Automatic Signature Update No File Size Limitation Blacklist / Whitelist
Networking	Routing Mode / Bridge Mode / Mixed Mode Layer 2 Port Grouping Ethernet / PPPoE / PPTP Tagged VLAN (802.1Q) Virtual Interface (Alias Interface) Policy-Based Routing (User-Aware) Policy-Based NAT (SNAT / DNAT) RIP v1 / v2 OSPF IP Multicasting (IGMP v1 / v2) DHCP Client / Server / Relay Built-in DNS Server Dynamic DNS
Bandwidth Management	Bandwidth Priority Policy-Based Traffic Shaping Maximum / Guaranteed Bandwidth Bandwidth Borrowing
Authentication	Internal User Database Microsoft Windows Active Directory External LDAP / RADIUS User Database ZyWALL OTP (One Time Password) Force User Authentication (Transparent Authentication)
High Availability	Device HA (Active-Passive Mode) Device Failure Detection Link Monitoring Auto-Sync Configurations Multiple WAN Load Balancing VPN HA (Redundant Remote VPN Gateways)
System Management 1	Role-Based Administration Simultaneous Administrative Logins Multi-Lingual Web GUI (HTTPS / HTTP) Object-Based Configuration Command Line Interface (Console / WebConsole / SSH / TELNET) Comprehensive Local Logging
System Management 2	Syslog (4 Servers) E-mail Alert (2 Servers) SNMP v2c (MIB-II) Real-Time Traffic Monitoring System Configuration Rollback Text-Based Configuration File Firmware upgrade via FTP / FTP-TLS / Web GUI Advanced Reporting (Vantage Report 3.1) Centralized Network Management (Vantage CNM 3.0)
Memory	256MB RAM / 256MB Flash
Interface	GbE x 7 (RJ-45, with LED)
Auto-Negotiation and Auto MDI/MDI-X	Yes
A Console	RS-232 (DB9F)
AUX	RS-232 (DB9M)
LED Indicator	PWR, SYS, AUX, CARD1, CARD2
Power Switch	Yes
Reset Pinhole	Yes
Extension Card Slot	Yes (2)
USB	Yes (2)
Rack Mountable	Yes (19-inch, rack-mount kit included)
Input Voltage	100-240VAC, 50/60Hz, 0.55-0.3A
Power Rating	35W Max
Operating Temperature	32deg. F - 122deg. F / 0deg. C - 50deg. C
Storage Temperature	-22deg. F - 140deg. F / -30deg. C - 60deg. C
Humidity	20% to 95% (non-condensing)
Dimensions (W x D x H)	17" x 8.3" x 1.7" / 430.0 x 201.2 x 42.0 mm
Weight	6.2lbs / 2,800g
