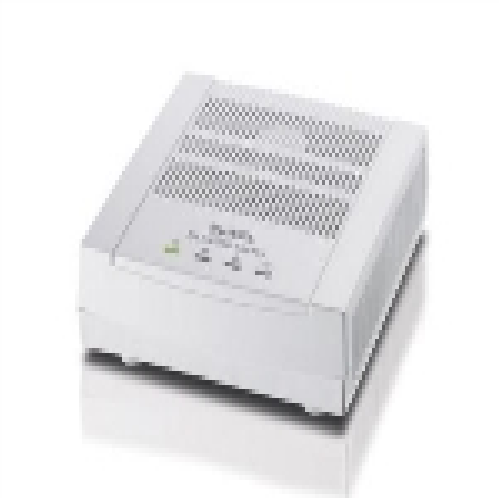

With a plug-and-play design, the ZyXEL HLA3105 HomePNA 3.1 Coax Ethernet Bridge provides an easy way for telcos to deliver IPTV services through the existing coaxial wiring. Just plug a pair of HLA3105 into the coaxial outlets in two rooms; one connects the HLA3105 to your DSL modem through a Ethernet cable and the other to an Ethernet-equipped device as a set-top box; thus the IPTV services can be delivered to every room at home without laying new wires.

Complying with the HPNA3.1 (ITU G.9954) standard, the HLA3105 is capable of delivering IPTV services over the existing coaxial cables at effective throughputs of up to 200 Mbps with QoS and Dynamic Bandwidth Allocation (DBA).

Equipped with internal filters, the HLA3105 saves installation cost of external filters since it delivers CATV signals to the TV and converts remote HomePNA signals to the Ethernet-equipped devices such as set-top boxes at the same time.





	Plug-and-play bridge adapter converts Ethernet to/from coaxial wirings
	HPNA 3.1 (ITU G.9954) compliant with data transfer rates of up to 320Mbps
	Two F-types coaxial connecters with internal filters to provide a cost-saving solution for reducing signal interference to the legacy TV
	One Fast Ethernet port for FTTx, DSL modem and Ethernet terminals as Set-top Box





Network standard	HomePNA 3.1 ITU-T G.9954 IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Contro
Range	Up to 1,000 meters (3280 feet) over coaxial cable
Nodes	Allow up to 60 HomePNA adaptors to connect to the coaxial home network
QoS	Support the guaranteed (parameterized) and prioritized QoS
Security	AES 128-bit based encryption
Frequency band	12-44 MHz
LED indicators	Power Signal quality Coaxial link/activity Ethernet link
Power Type	DC 5V, 1A
Power Consumption	3 Watts
Operating environment	Temperature: 0deg. C - 40deg. C / 32deg. F - 104deg. F Humidity: 20% - 85% (non-condensing)
Storage environment	Temperature: -30deg. C - 60deg. C / -22deg. F - 140deg. F Humidity: 20% - 95% (non-condensing)
Dimensions (W x D x H)	112 x 106 x 28.5 mm / 4.41" x 4.17" x 1.1"
Weight	167 g / 0.37 lb
