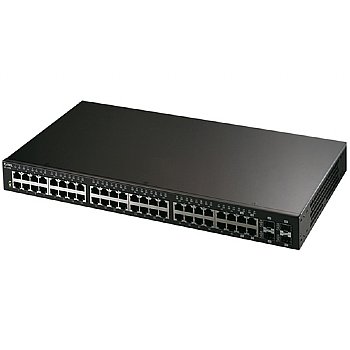

ZyXEL GS-1548 is a 48-port L2 Gigabit switch with advanced Web-based management support and it's specially designed for SMB/Enterprise networks where extra bandwidth and advanced QoS or security features are required. To cope with the diverse requirements of SMB/Enterprise businesses, the ZyXEL GS-1548 Web-managed switch comes with 40 Gigabit copper ports plus 4 dual-personality (RJ-45/SFP) Gigabit ports to provide 96 Gbps of non-blocking connectivity for SB/SMB networks. With the flexible multi-function design, GS-1548 fits any network with very little effort.





	ZyXEL GS-1548 is a 48-port L2 Gigabit switch with advanced Web-based management support and it's specially designed for SMB/Enterprise networks where extra bandwidth and advanced QoS or security features are required
	To cope with the diverse requirements of SMB/Enterprise businesses, the ZyXEL GS-1548 Web-managed switch comes with 40 Gigabit copper ports plus 4 dual-personality (RJ-45/SFP) Gigabit ports to provide 96 Gbps of non-blocking connectivity for SB/SMB networks
	While many legacy Web-based Smart Switches improve manageability, configuration complexity is still an issue; for most SB/Enterprise, inadequate IT expertise and complicated configuration are the major concerns to overcome
	Security is becoming increasingly important in SMB/Enterprise networks. Equipped with Auto DoS Attack Prevention, the GS-1548 is capable of protection against ubiquitous DoS attacks. A few mouse clicks are all it takes to initiate the protection
	The GS-1548 supports 802.1Q VLAN for traffic isolation, as well as Static MAC forwarding and dynamic ARP to establish a strictly protected network
	"Auto VoIP" offers IP telephony without configuration headaches; features such as four priority queues and the WRR (Weighted Round Robin) scheduling algorithm are usually deployed on enterprise networks, allowing users to optimize network bandwidth usage and implement QoS
	Auto DoS Attack Prevention & Auto VoIP
	96 Gbps Non-blocking Switching Fabric for the fastest speeds
	Flexible 4 GbE Uplink Interfaces provide maximum speed between switches



Standard Compliance	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100 Base-Tx Ethernet IEEE 802.ab 1000 Base-T Ethernet IEEE 802.3z IEEE 802.3x Flow control IEEE 802.1p Class of service, priority protocols IEEE 802.1Q VLAN tagging IEEE 802.3ad static port aggregation
Non-blocking switching fabric	96Gbps
Switching Forwarding Rate	71.4Mpps
MAC and Packet Buffer	8K MAC entries 512KB Packet Buffer
Traffic Management and QoS	Rate Limiting: Port-based bandwidth control ( 64kbps, 256 kbps, 1Mbps, 10Mbps, 64Mbps, 100Mbps, 1Gbps) Port-based egress traffic shaping Broadcast Storm Control Congestion control on all ports IEEE 802.1p with 4 priority queues per port for different types of traffic WRR (Weighted Round Robin)/SPQ scheduling algorithm Jumbo frame support ( up to 9KB
Link Aggregation	IEEE 802.3ad static port aggregation Up to 6 aggregation groups, per group supports up to 8
User Security and Authentication	Specific MAC forwarding per port: only specified MAC addresses can access the network (Port Security) IEEE 802.1Q tag-based and port-based VLAN 256 static VLAN, up to 4K dynamic VLAN Dynamic ARP
Network Administration Security	Password required for administrators
Network Management	Web-based management Telnet SNMP v1, v2, v3 IP management: static IP or DHCP client RMON-Lite Port mirroring: supports Source/Destination/Both port mirroring Cable Diagnostic
MIB Information	RFC1213 MIB II RFC1398 (Ether-like
Auto-negotiation	Yes
Auto MDI/MDI	Yes
Hardware	Support of auto-negotiation Support of auto MDI/MDI-X, Ports: 20/44 1000BASE-T, RJ-45 ports, 4 dual-personality (RJ-45/ SFP slot) GbE ports
Dimensions (W x D x H)	438 x 240 x 44.45 mm / 1.73" x 9.44" x 1.75"
Weight	3.7 Kg / 8.15 lbs
