The ZyXEL GS1510 Series is a user-friendly solution aiming at office network environments demanding silent operation and green technology. The Series provides security and plug-and-play simplicity for sustainable high-bandwidth connectivity.

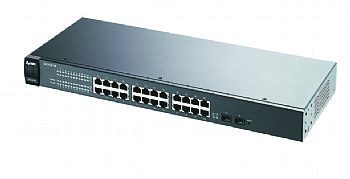

The GS1510 Series consists of 16- and 24-port 10/100/1000 Mbps Web-managed switches. The GS1510-24 Switch offers two open Gigabit SFP slots to provide more flexibility on fiber connectivity for long loop reach applications. The GS1510 Series not only provides Layer-2 switching capability at wire speed over the current CAT-5 cabling to desktops following the IEEE standards, but also features high performance, ease of use, flexible deployment and enhanced energy efficiency. It is ideal for small businesses to protect the existing network investments while extending managed networks.





	To address security needs, The GS1510 Series not only supports 802.1X port-based authentication that allows the network to be authenticated through external RADIUS servers, but also enables Web authentication to provide enhanced, secured collaboration with ZyXEL's NWA3000 AP Series
	With the Auto MDI/MDI-X feature, it eliminates the need for crossover cables when connecting to another switch or hub; in addition, the Auto-negotiation feature senses the link speed of a connected network device then intelligently makes adjustments for compatibility and optimal performance
	The GS1510 Series also offer easy management to fulfill user needs through SNMP and the Web-based GUI that provides two modes: the Smart Mode and the Advance Mode
	The GS1510 Series provides Auto-discovery tool for topology management as well. This tool helps the network administrator to find the IP address of a GS1510 on the network by performing a scan process
	The GS1510 Series has environment-awareness along with Gigabit Ethernet speeds critical for the next-generation network applications and provides power saving functions to reduce energy consumption and to help businesses save cost
	Traffic detection- IEEE Energy-Efficient-Ethernet (EEE) compliance. The feature automatically detects network traffics and adjusts power consumption accordingly in a dynamic manner. It reduces power consumption during periods of low link utilization
	Inactive link detection: The power usage adjustment feature automatically reduces power usage when any shut down network device or inactive link is detected. That is, power consumption of the Series can be adjusted according to the link status or the number of active network devices when possible
	Cable length detection: The devices equipped with this green feature can automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes
	The GS1510 Series is the perfect solution for small business and SOHO office deployments. The design promotes quieter environments and less heat dissipation and it offers energy and cost saving properties without affecting the desirable performance



Standard Compliance	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X (GS1510-24 only) IEEE 802.3az EEE support IEEE 802.3x Flow control IEEE 802.1p Class of service, priority protocols
Traffic Management and QoS	Port-based egress traffic shaping Broadcast storm control IEEE 802.1p with 8 priority queues per port for different traffic types Weighted Round Robin (WRR)/SPQ/WFQ scheduling algorithm Supports DSCP Supports DSCP to 802.1p priority mapping Supports IGMP/IGMP snooping v1, v2, v3 Jumbo frame support (up to 9 KB) Auto-discovery
Link Aggregation	IEEE 802.3ad LACP link aggregation compliant Support static manually port trunking Up to 8 aggregation groups, 8 ports/per group randomly selected
Resilient Network	IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
User Security and Authentication	Web authentication 256 static VLAN, up to 4K dynamic VLAN Port-base VLAN IEEE 802.1Q tag-based and port-based VLAN Specific MAC forwarding per port: only specified MAC addresses can access the network (Port security) 802.1x port-based authentication, compensated assignment over VLAN and bandwidth for valid access IP source guard Loop guard
Network Administration Security	User name/password required for Web Two-level security by specific SNMP read/write community
Network Management	Web-based management SNMP v1, v2c IP management: Static IP or DHCP client RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis Port mirroring: Support source/destination/both port mirroring
MIB Information	RFC 1213, 1157 SNMP v2c MIB RFC 1493 bridge MIB RFC 1643 Ethernet MIB RFC 1757 RMON group 1, 2, 3, 9
