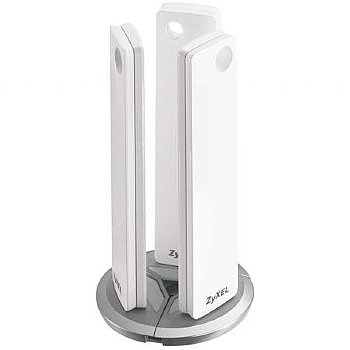

ZyXEL's ANT1106 provides increased coverage for existing 802.11b/g/n wireless networks. Comparing with normal 2 dBi antennas, it improves transmission distance as much as 174%. With the ANT1106, you can easily avoid cost and complexity of adding additional access points or repeaters.
Features:
 |
This omni-directional antenna design not only improves signal quality and wireless signal range, but also eliminates dead spots in its 360deg. wireless coverage |
|
The ANT1106 can increase the effective range of 2.4 GHz wireless routers, Access Points, PCI adapters and similar devices from ZyXEL and other makers |
|
The ANT1106 comes with a base plate, a desk-mount plate, a wall-mount plate, 1.5 m extended cable and accessories. Users may choose the wall or desk-mount configuration for better wireless performance |
|
6 dBi Omni-directional Antenna for Extended Wireless Signal Coverage |
|
Compatible with 802.11b/g/n Wireless Devices that Support RP-SMA Connectors |
|
Allows Desktop and Wall-mount for Flexible Placement |
|
Easy to Install, No Software Required |
Specifications:
| Antenna type |
Helix Dipole |
| Application |
Indoor |
| Frequency and bandwidth |
2.4 GHz - 2.5 GHz |
| Antenna radiation |
Omni-directional |
| Peak gain |
6 dBi |
| HPBW/H |
360 Degree |
| HPBW/V |
25 Degree |
| VSWR |
2.0: 1 |
| Coaxial cable |
LMR-100, 1600 mm |
| Cable loss @2.45 GHz |
2.2 dB |
| Connector |
RP-SMA |
| Operating temperature |
0deg.C - 50deg.C; 32deg.F - 122deg.F |
| Storage temperature |
-20deg.C - 70deg.C; -4deg.F - 158deg.F |
| Operating/Storage humidity |
20% - 95% RH |
| Dimensions (W x D x H) |
166 x 40 x 15 mm / 6.54 x1.57 x 0.59 inches |
| Weight |
78 g / 2.57 oz |
|
|
