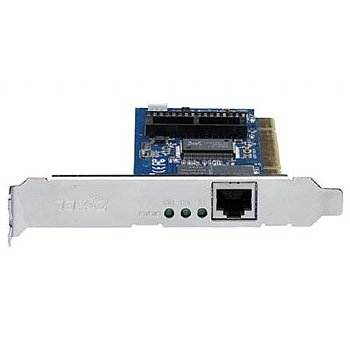

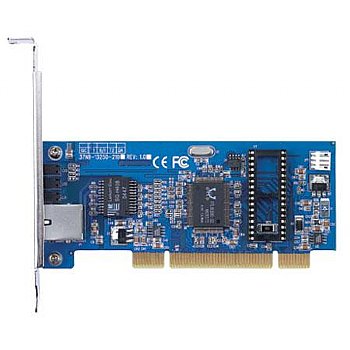

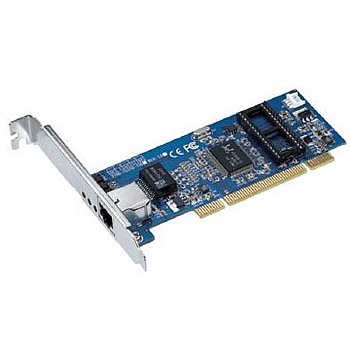

ZyXEL's GN680-T Gigabit PCI adapter can speed up access time and move large files across a network instantly. GN680-T not only builds standard-based 10/100/1000 flexibility and scalability into a network, but also makes network migration to Gigabit speeds efficient and cost-effective. IEEE-based VLAN support and priority tagging enables broadcast storm blocking and traffic classification, making networks more efficient and secure.
Features:
| | Auto-negotiating 10/100/1000Mbps |
| | Automatic MDI/MDIC crossover |
| | Plug-and-Play |
| | Support 802.1Q VLAN |
| | Support 802.1p priority queue |
| | Support ACPI to save power consumption |
| | Support WoL(Wake-On-LAN) for remote wake-up |
Specifications:
| Standards compliance | IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet
1000Base-T gigabit
ANSI/IEEE802.3 Auto-negotiation
IEEE802.3x Flow Control
802.3ab
802.1p Priority Tagging
802.1q VLANs |
| Data transfer rates | Ethernet 10M/20Mbps(half/full duplex)
Fast Ethernet 100M/200M(half/full duplex)
Gigabit 1000M/2000M (half/full) |
| Interface | Single port: 10BASE-T, 100BASE-TX
1000BASE-T Ethernet port
PCI Bus type
PCI 2.2
32 bit at 33MHz or 66MHz |
| Media Interface Exchange | Auto MDI/MDI-X |
| Status LED | LINK/ACT
10/100/1000Mbps |
| Cabling | 10BASE-T: 2-pair UTP Cat.3, 4, 5 (100 m), EIA/TIA-586 100-ohm STP (100 m)
100BASE-TX: UTP Cat.5 (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.)
1000BASE-T: UTP Cat.5 (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.) |
| QoS | 802.1Q VLAN tagging
802.1p, 8-priority queues (VLANs) |
| Jumbo frame | Up to 7.5KB |
| Power saving | ACPI Ver 2.0WoL |
| Management | DMI 2.0WfM Baseline V2.0 |
| Operating temperature | 0deg. C - 45deg. C (32deg.F to 113deg.F) |
| Humidity | 10% to 90% (Non-condensing) |
| System requirement | Gigabit switch(e.g.GS-108A)
Network Cables |
| Dimensions (L x W) | 5.2" x 2" / 133 x 49 mm |
| Weight | 2oz / 64g |
| |
