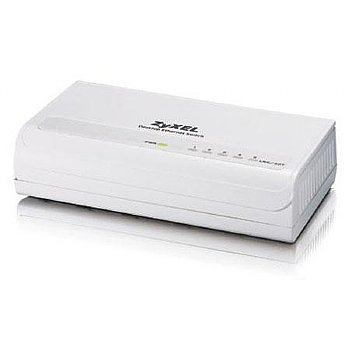

The ZyXEL ES-105S comes with 5 Fast Ethernet ports designed for easy home network extension, while the compact, elegant design and silent operation also fit any home environment easily. The optional wall-mount installation also allows users to free up the room space.
Features:
 | The ES-105S with plastic housing offers a Fast Ethernet solution for users to easily extend home networks and to fulfill their online gaming, multimedia transferring and streaming needs |
| The plug-and-play design allows users to easily connect network devices such as PCs, network storages and print servers to the home network without manual configuration involved |
| With the N-way auto-negotiation function, the ES-105S connects to network counterparts with highest possible network speed and activates full-duplex mode automatically, while the store-and-forward service brings low latency and error-free packet delivery |
| The ES-105S features Green solutions that provide power-saving benefits without compromising performance. The ES-105S automatically reduces power usage by detecting any shutdown network device or inactive link |
| Compact and Elegant Design |
| Plug-and-Play Design for Easy Connection to up to 5 Networking Devices |
| Automatically Adjust Power Consumption by Detecting Link Status and Cable Length |
Specifications:

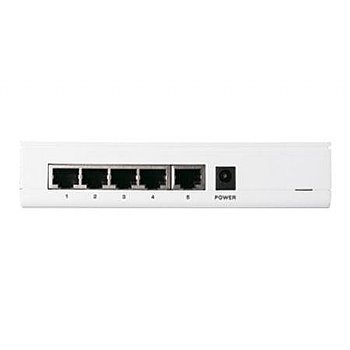

| Interface | 5 x 10/100 Mbps Ethernet Ports |
| Standard | IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3 N-way Auto-negotiation
IEEE 802.3x Full Duplex Operation and Flow Control |
| Performance | Auto-MDI/MDIX on all ports
Transmission Method: Store-and-forward architecture
Data Transfer Rate (Half Duplex/Full Duplex):
Ethernet: 10/20 Mbps
Fast Ethernet: 100/200 Mbps
MAC Address Table: 2K
Memory Buffer: 48KB
Switching Fabric (Non-blocking): 1.0 Gbps |

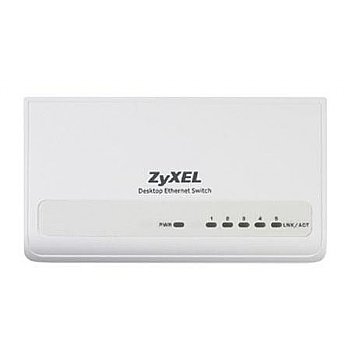

| LED Indicator PWR | Power |
| LED Indicator Per Port | Link/ Activity |
| Power Supply | External switching power adapter
Input: 100-240V AC
Output: 5V DC, 0.6A |
| Power Consumption | 2.25 Watt max |
| Operating Environment | Temperature: 0deg. C - 50deg. C(32deg. F - 122deg. F)
Humidity: 10% - 95% (Non-condensing) |
| Storage Environment | Temperature: -40deg. C - 70deg. C(-40deg. F - 158deg. F)
Humidity: 10% - 95% (Non-condensing) |
| Dimensions (W x D x H) | 150 x 81.2 x 32.2 mm / 5.9" x 3.2" x 1.3" |
| Weight | 160 g ( 0.35 lb) |
| |
