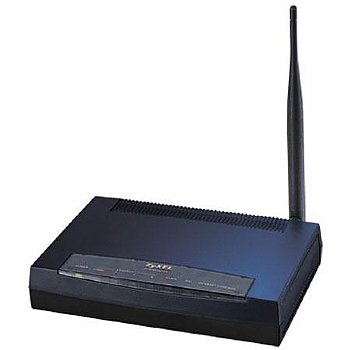

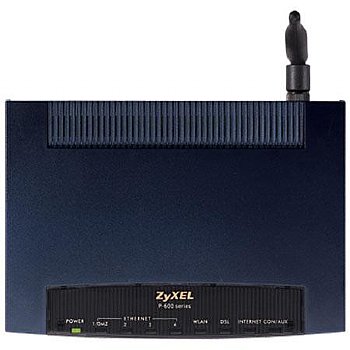

The P-662HW-D1 is a wireless ADSL2+ router. It has four 10/100 Base-T Ethernet ports and provides WAN throughput of up to 24Mbps. The P-662HW-D1 features a Fail-over and Fall back WAN backup solution for complete reliability. When the DSL connection fails, traffic is forwarded to either a backup ISDN or analog modem to maintain data transfer. When the DSL connection is re-established, traffic is fully restored.
The integrated AP complies with IEEE 802.11b/g standards. Using "G+" technology, it provides wireless transmission speeds of up to 108Mbps. The router supports WEP and WPA/WPA2 wireless encryption and 802.1x authentication. It uses WMM (QoS) to prioritize the traffic over the network. This router provides VPN pass-through for IPSec, allowing you to establish up to 20 simultaneous VPN tunnels. It features a built-in SPI firewall to protect the network from Denial of Service (DoS) attacks.
Features:
![](http://www.adorama.com/artworks2/blackbulet.gif) | The P-662H-D series is compatible with high-speed ADSL, ADSL2 and ADSL2+ interfaces over existing copper lines. With speeds of up to 12Mbps (ADSL2) or 24Mbps (ADSL2+), the P-662H-D series offers higher data transfer rates and better bandwidth than traditional ADSL gateways |
![](http://www.adorama.com/artworks2/blackbulet.gif) | The ICSA-compliant ZyNOS operating system ensures state-of-art firewall performance and robust security on the P-662H-D. Based on stateful packet inspection, DoS (Denial of Service) and DDoS features, it provides the first line of defense against hackers, network intruders, & other malicious threats |
![](http://www.adorama.com/artworks2/blackbulet.gif) | The P-662H-D Series features a fail-over and fall back WAN backup solution for complete reliability. When the DSL connection fails, traffic is forwarded to either a backup ISDN or analog modem to maintain data transfer. When the DSL connection is re-established, traffic is fully restored |
Specifications:
Enclosure Type | Desktop |
Digital Signaling Protocol | ADSL Lite, ADSL, ADSL2, ADSL2+, READSL |
Data Link Protocol | Ethernet, Fast Ethernet |
Capacity | IPSec VPN tunnels: 20 |
Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec |
Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP |
Remote Management Protocol | SNMP, Telnet, HTTP |
Compliant Standards | IEEE 802.1D, IEEE 802.1x, UPnP |
Encryption Algorithm | AES, PKI |
Protocols & Specifications | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.992.3 (G.DMT.bis), ITU G.992.4 (G.lite.bis), ITU G.992.5 |
Max Transfer Rate | 24 Mbps |

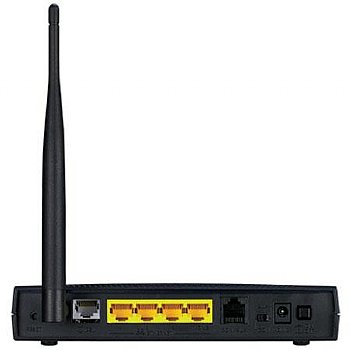

Interfaces | WAN: 1 x ADSL, LAN: 4 x 10Base-T/100Base-TX - RJ-45, Management: 1 x console - RJ-45 |
Dimensions (WxDxH) | 18 x 12.8 x 3.6cm / 7.08 x 5.04 x 1.42in |
Weight | 360g / 0.79lbs |
| |
