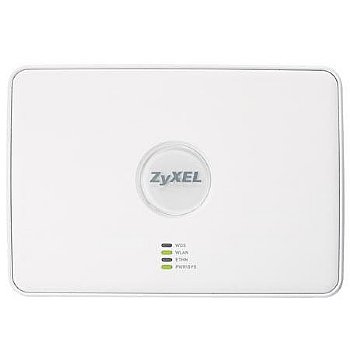

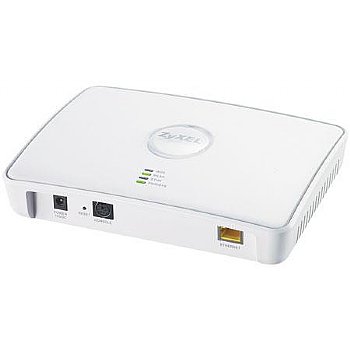

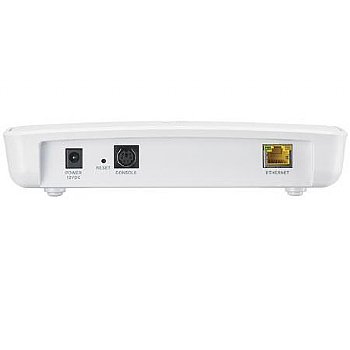

The ZyXEL NWA3166 Wireless LAN Access Point is a "hybrid" AP that acts as a stand-alone enterprise-class AP and/or a WLAN controller at the same time. The hybrid AP has full flexibility to deploy secure and reliable WLAN networks and is able to manage up to 24 APs and is suitable for companies with 300-500 staffs. In the initial phase constructing a WLAN, the NWA3166 can be configured as a fully functional stand-alone AP; with more APs installed, the NWA3166 can be set to the WLAN controller mode to manage all other access points. When a new branch office is established, one of the managed NWA3166 can become another controller to manage a separate WLAN network.

The NWA3166 Wireless LAN Access Points is full-function, enterprise-class AP providing 802.11a/b/g connectivity, up to 8 SSIDs per radio, profile-based management, leading QoS technology for VoWiFi applications, as well as comprehensive management features for massive deployments.





	3-in-one Hybrid AP WLAN including AP Controller Mode, Managed AP Mode and Stand-alone AP Mode
	Centralized Management for Up to 24 WLAN Access Points
	Back-up Redundancy Supported to Provide Reliable Connection Service
	Secured Tunnels for Communication between Controller and Managed AP to Prevent Leaking of Configurations
	Enterprise-class Access Point Functionalities with Comprehensive Configuration Interfaces
	Built with LSOH (Low Smoke Zero Halogen) Materials for Plenum Rating for UL 2043 Support



Hybrid AP	Controller/Managed AP/Stand-alone AP
Wireless Technology	11a/b/g/n
Radio	Frequency Band: 2.4GHz (11b/g): USA: 2.412 to 2.462 GHz ETSI: 2.412 to 2.472 GHz Taiwan: 2.412 to 2.462 GHz 5GHz (11a): USA: 5.15 to 5.25, 5.470 to 5.725 GHz, 5.725 to 5.825 GHz ETSI: 5.15 to 5.35, 5.470 to 5.725 GHz Taiwan: 5.25 to 5.35, 5.725 to 5.825GHz
Maximum Output Power	11b/g: 54 Mbps: 17dBm 6 Mbps: 17dBm 11g/n: 20MHz: 17dBm 40MHz: 13dBm 11a:54 Mbps: 18dBm 6 Mbps: 18dBm 11a/n: 20MHz: 18dBm 40MHz: 18dBm
Number of Antenna	3 Embedded
Wired Data Rates	10/100 Mbps Auto-sensing (full-duplex switch)
LAN & WAN	1 10/100M LAN/Switch PoE Max. Power Levels at Powered Device: 7.4W
Maximum Throughput	90-100Mbps
Wi-Fi Security	WEP 64/128-bit WPA-PSK & Enterprise (certified) WPA2-PSK & Enterprise (certified) Support EAP type: MD5/TLS/TTLS/EAP/SIM
WLAN Management	Controller Managed AP
Standard Compliance	Ethernet: IEEE 802.3 IEEE 802.3u PoE: 802.3af Radio Modulation: Radio Modulation: IEEE 802.11a: BQSK, QPSK, 16-QAM, 64-QAM IEEE 802.11b: DBQSK, DQPSK, CCK IEEE 802.11g: BQSK, QPSK, 16-QAM, 64-QAM IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM
Power supply	12V DC, 1.5A
Operating Environment	Temperature: 0deg. C - 50deg. C Humidity: 20% - 95% (non-condensing)
Storage Environment	Temperature: -30deg. C - 60deg. C Humidity: 20% - 95%
Dimensions (W x D x H)	198.5 x 138.5 x 47.5 mm / 7.83"x 5.47"x 1.73"
Weight	420 g (0.93lb)
