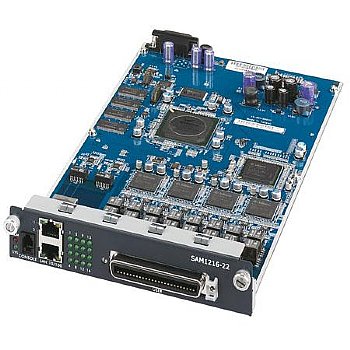

G.SHDSL.bis line module to provide transmission rate up to 4096kbps symmetrically in a single pair. It also comes with two 100Mbps Ethernet interfaces toward Ethernet aggregation network. One IES-1000 can accommodate two SAM1216-22 modules to support 32 SHDSL connections. In addition, the SAM1216-22 supports ITU G.991.2 m-pair bonding in a physical layer manner. The m-pair bonding can be 2 or 4 pairs and the aggregated payload rate is around 16Mbps.
Specifications:
| Application/Usage |
Data Networking |
| Compatibility |
IES-1000 Series IP DSLAM |
| Interfaces/Ports |
1 x Telco 50 Connector
16 x Port G.SHDSL WAN
2 x RJ-45 10/100Base-TX Uplink
1 x RJ-11 Console Management |
| Data Transfer Rate |
10 Mbps Ethernet
100 Mbps Fast Ethernet
16.38 Mbps G.SHDSL |
| Connectivity Media |
Twisted Pair 10/100Base-TX |
| SDSL Standard |
ITU G.shdsl (ITU-T G.991.2)
ITU G.shdls.bis (ITU-T G.991.2) |
| Dimensions (H x W x D) |
1.38 x 6.69 x 12.6in / 35.05 x 169.93 x 320.04mm |
|
|
