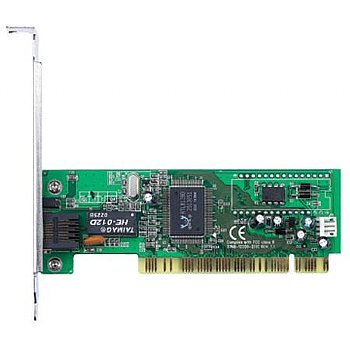

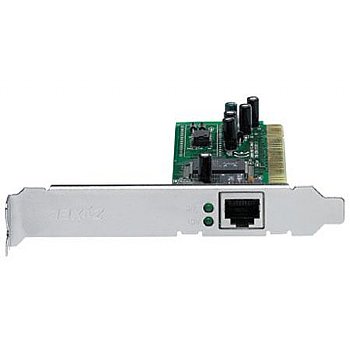

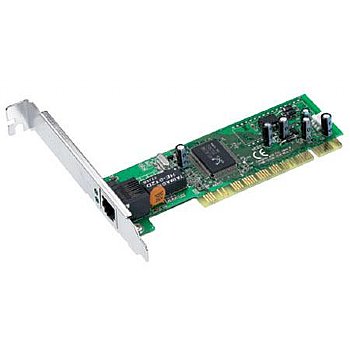

ZyXEL FN312 connects PCs to other networked computers, printers, routers, NAS appliances and the Internet, enabling high-speed data transfer rates for all kinds of data.
Features:
 | FN312, with Wake-On-LAN, allows you to remotely access your PCs at any time to perform administrative tasks |
| Compatible with the Microsoft-led On Now industry initiative for instantly available PCs |
| Just open your PC, plug in your FN312, start your PC and install the driver from the floppy diskette |
Specifications:
| Standards | Complies with IEEE802.3/IEEE802.3u
Complies PCI spec. v. 2.1/2.2
Support Half/Full Duplex operation at 10BaseT/100BaseTX
Support 10/100M auto-negotiation on RJ-45 connector
Support WOL function that allows remote power control of the PC
Diagnostic LEDs indicates status of both network and adapter |
| Data transfer rates | Ethernet 10M/20Mbps(half/full duplex)
Fast Ethernet 100M/200M(half/full duplex) |
| Interface | 1 10/100BASE-T Ethernet port |
| Network Cables | 10BASE-T: UTP Cat.3, 4, 5 (100 m) EIA/TIA-586 100-ohm STP (100 m)
100BASE-TX: UTP Cat.5 (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange: MDI-II/MDI-X auto-adjustment |
| Status LED | 10/100M, LNK/ACT |
| Back plane | Non-Blocking full wire speed forwarding rate 200Mbps |
| Packet Forwarding Rate | 14880PPS for 10BASE-T
148800PPS for 100BASE-TX |
| Switching Method | Store-and-forward |
| Operating temperature | 32deg. F - 113deg. F / 0deg. C-45deg. C |
| Humidity | 10% to 90% (Non-condensing) |
| System support | Microsoft Windows 98/2000/ME/XP
Microsoft Windows NT 4.0
Microsoft Windows Workgroup 3.11
Novell NetWare 5.x/4.x
Novell NetWare client 32
Linux Redhat 6.x, 7.x
Network Cables |
| |
