EXT114

SKU: EXT114
Brand: Zyxel

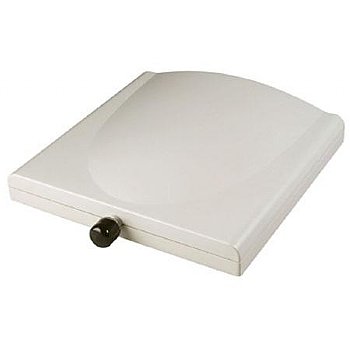

ZyXEL 14 dBi Outdoor Panel Antenna
List Price: $149.99
Price: $126.22
You Save: $23.77 (16%)
EXT114
EXT114
Product Details
The ZyXEL 14 dBi Outdoor Panel Antenna performs best in open environments with the least amount of obstructions possible. Performance may be significantly impaired if antennas are mounted near metal surfaces, concrete walls, or other high-density materials. To meet the challenge of these and other severe environments, ZyXEL offers performance-enhancing antennas for its ZyXEL family of wireless modems.

ZyXEL's extended reach antennas allow users to get the best wireless performance out of the most difficult environments. With ZyXEL antennas, customers will enjoy greater reach and better transmission quality for their wireless networks.

Specifications:

Frequency range 2400 MHz - 2500 MHz
Gain 14 dBi
VSWR 1.5: 1 Max.
Polarization Linear, vertical
HPBW / horizontal 30deg.
HPBW / vertical 30deg.
Front to back ratio 15 dB
Downtilt 0deg.
Power handling 10W (cw)
Impedance 50 Ohms
Connector N female
Survival wind speed 216 km/hr
Temperature - 40deg.C to 80deg.C
Humidity 95% @ 25deg.C
Lightning protection DC ground
Radome material ABS, UV resistant
Dimensions 7.8" x 7.8" x 2" / 200 x 200 x 50 mm
Weight 14oz / 0.4kg
