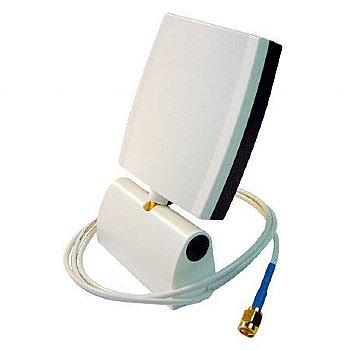

ZyAIR's extended reach antenna allows users to get the best wireless performance out of the most difficult environments. With ZyXEL ZyAIR EXT106 6dBi antenna customers will enjoy greater reach and better transmission quality for their wireless networks.
Specifications:
| Space |
Indoor |
| Frequency range |
2400 MHz - 2500 MHz |
| Gain |
6 dBi |
| VSWR |
2.0: 1 Max. |
| Polarization |
Linear, vertical |
| HPBW / horizontal |
65deg. |
| HPBW / vertical |
75deg. |
| Impedance |
50 Ohms |
| Connector |
RP SMA Plug |
| Temperature |
- 10deg. C to 55deg. C |
| Humidity |
95% at 55deg. C |
| Housing Material |
ABS, UV resist |
| Dimensions |
76 x 86 x 118 mm / 2.99 x 3.38 x 3.38 in |
| Weight |
110 g / 3.88 oz |
|
|
