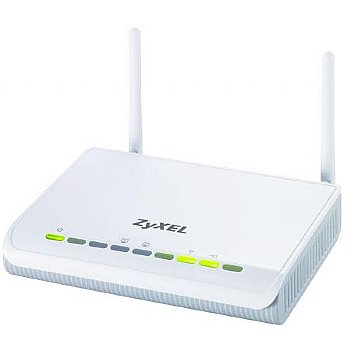

The ZyXEL WAP3205 brings you a faster wireless connection than the existing 11g networks. With a data transfer rate of up to 300Mbps, which is 6 times faster than 11g, you can enjoy high-speed network connection and high-definition video streaming no matter where you are at home and better yet, it also works with your existing 802.11b and 802.11g network.

Some wired devices such as modems, set-top boxes, digital media adapters and storage devices might not be natively wireless capable. In order to connect these without additional wiring, driver installation or configuration, just plug the Ethernet cable into the WAP3205 and connect to another wired device to get connected wirelessly.

With the built-in Universal Repeater mode, the WAP3205 can work as a wireless client to connect most popular access points and simultaneously performs as an access point to provide wireless connectivity to all other wireless devices such as notebooks. In other words, WAP3205 can extend the wireless coverage to the entire home premise and enable all wireless devices to link to the existing network - this is especially helpful for larger home environments. Equipped with a Wi-Fi Protected Setup (WPS) push button, the WAP3205 makes establishing a secure wireless network easy. The WPS takes only a few seconds to set up a secure wireless network without any complicated procedures.

Instead of entering a pass phrase, users can authenticate a new device on the network by pressing a single button or by entering an automatically generated PIN code. With the button option, users could even setup the wireless configuration and encryption with just a simple click.

™

™

	802.11n with Data Transfer Rate of up to 300 Mbps
	Backward Compatibility with the 802.11b/g Standard
	Easy to Extend the Wireless Network Coverage
	WPS Button for Quick and Easy Wireless Security Setup
	Secure Wireless Communications with WEP/WPA/WPA2

™

System Specification	802.11b/g and 802.11n draft 5-in-1 modes, including Access Point, WLAN Client, WLAN Bridge, WDS Repeater and Universal Repeater. Wireless Security: 64/128 bit WEP, WPA/WPA2 Wi-Fi Protected Setup (WPS) Mac Address Filtering Multiple SSID Channel Auto Scan IGMP snooping v1/v2 Wi-Fi Multimedia (WMM) Support Wireless Scheduling Output Power Management Remote Management Diagnostic Logs
LAN	Two 10/100Mbps Ethernet RJ-45 connectors with auto MDI/MDIX support
LED indicator	Power Ethernet (1-2) WLAN WPS
Power	DC 12V, 1A
Power Consumption	5 Watt Max.
Operating temperature	0deg.C - 40deg.C
Storage temperature	-30deg.C - 70deg.C
Storage Humidity	20 - 95% (Non-condensing)
Operating Humidity	20 - 90% (Non-condensing)
Dimensions (W x D x H)	162 x 115 x 33mm (6.38" x 4.53" x 1.3")
Weight	245g (0.54lb)
